Product Description

400 watts Die Boards Plywood Laser Cutting Machine

With years of experience in production 400 Watts Die Boards Plywood Laser Cutting Machine, Shenzhen Adewo Automation Technology Co.,ltd. can supply a wide range of 400 Watts Die Boards Plywood Laser Cutting Machine. High quality 400 Watts Die Boards Plywood Laser Cutting Machine can meet many applications, if you need, please get our online timely service about 400 Watts Die Boards Plywood Laser Cutting Machine. In addition to the product list below, you can also customize your own unique 400 Watts Die Boards Plywood Laser Cutting Machine according to your specific needs.

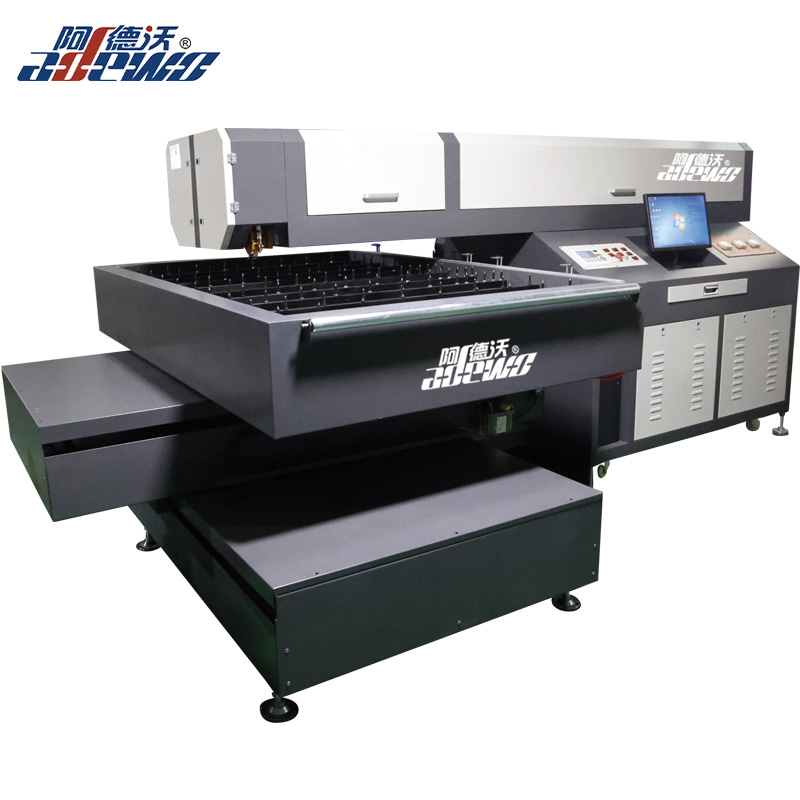

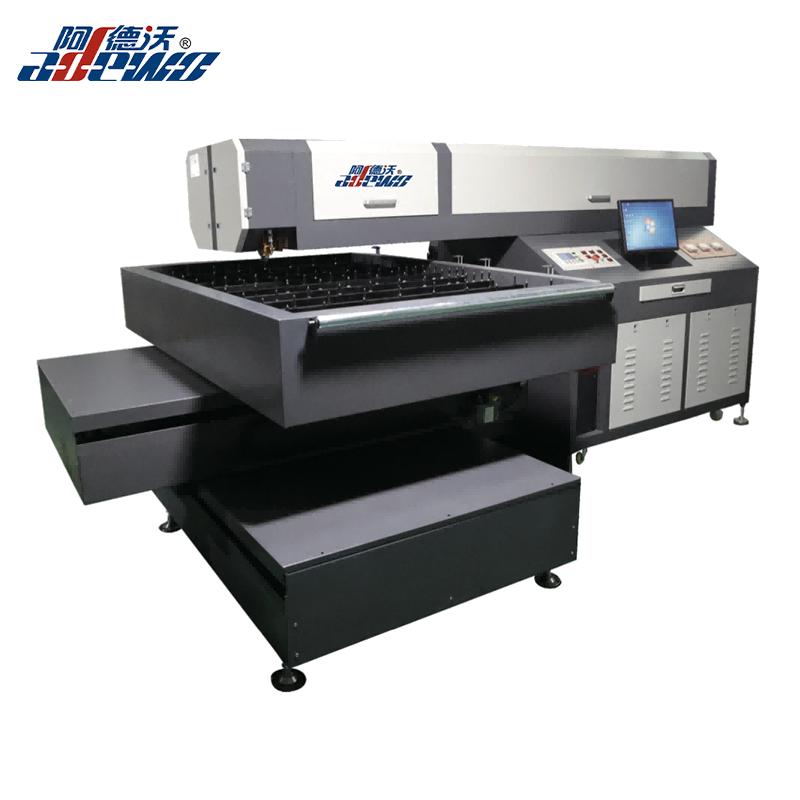

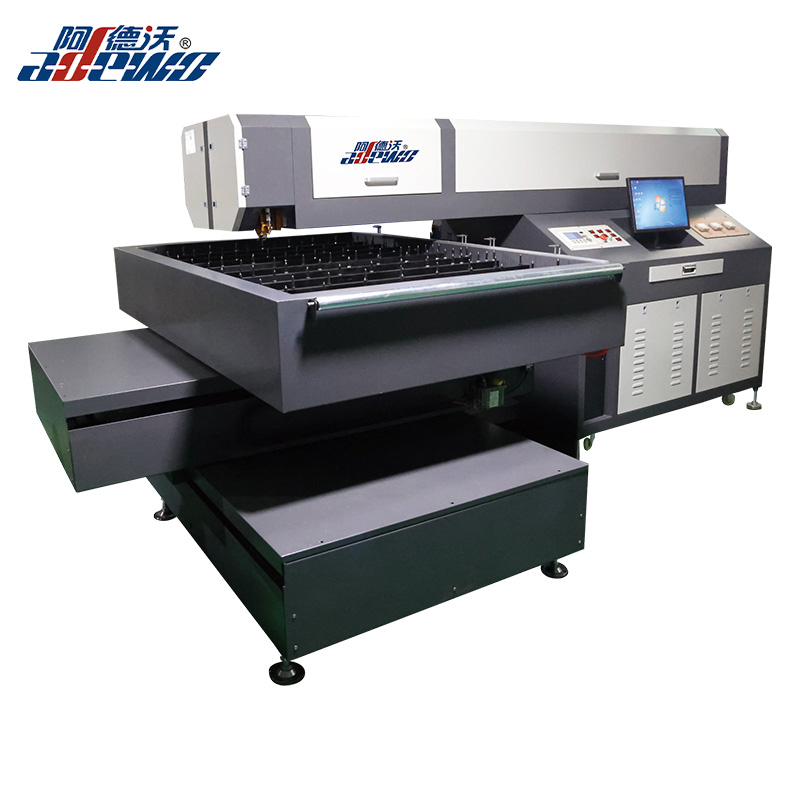

Picture of (ADW-LC400)400 watts Die Boards Plywood Laser Cutting Machine for reference:

1.Product Features:

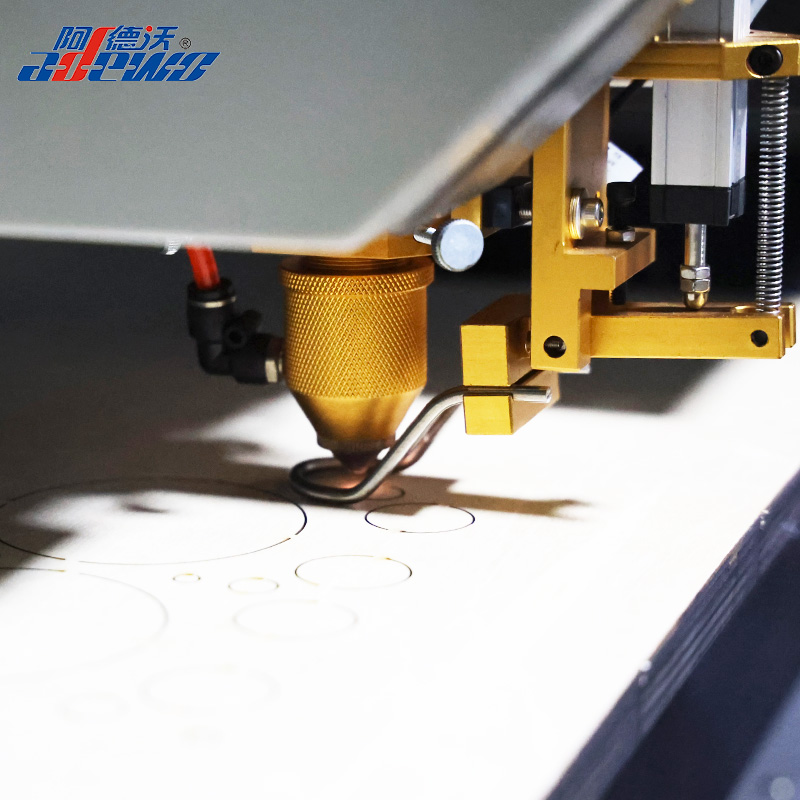

1.Fixed laser line path(the laser head fixed, the material body moved) of 400watts Die Boards Plywood Laser Cutting Machine with fast cutting speed, around 30-35 meters/hour,18mm plywood; High precision, cutting precision is +-0.05mm; Smooth cutting, CO2 CNC laser cutting; Lower noise.

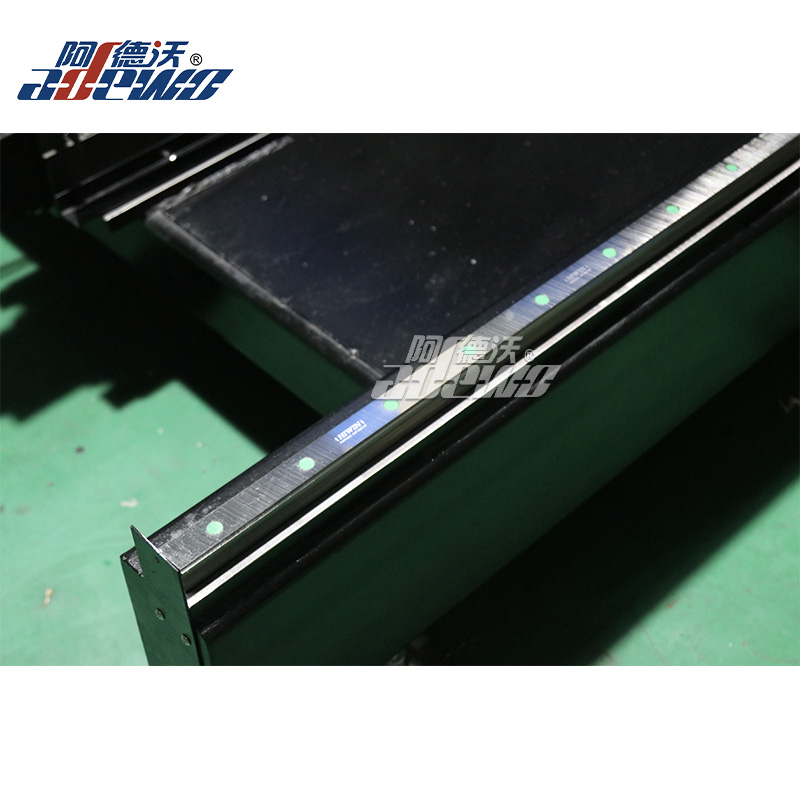

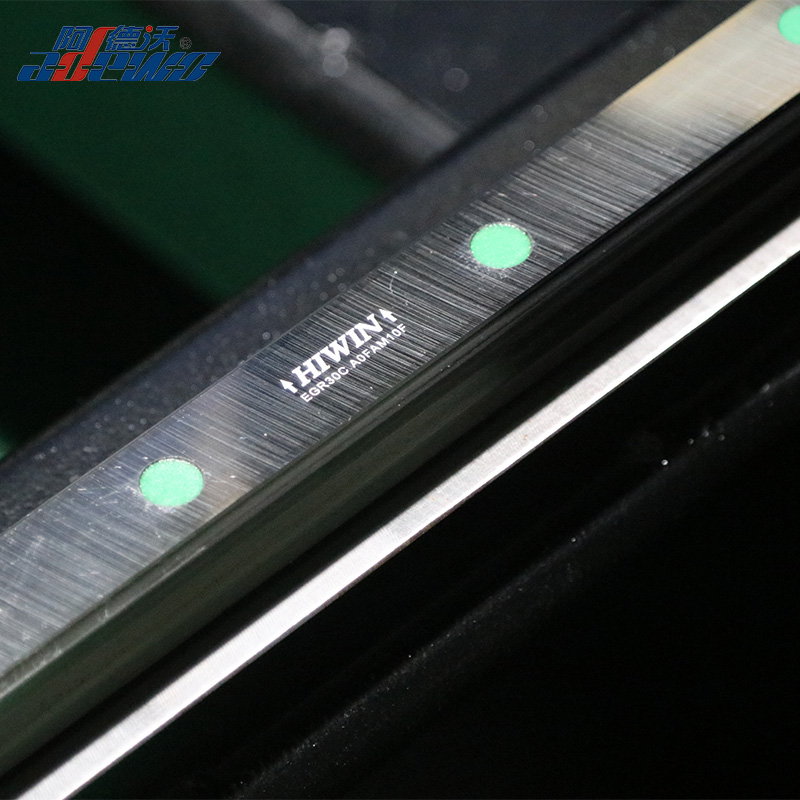

2.Imported precision ball screw driving (more precise than general one), with the error of precision electronic mould of 0.05mm.

3.Low electricity consumption and low cost of 400 watts Die Boards Plywood Laser Cutting Machine, 220V single-phase electricity, 3KW/h (3000w power machine)

4.High-strength stable machine tool without deformation for long term working.

5.Real time regulation: Users can regulate the laser power, according to needs to improve the cutting effect.

2.Technical Parameters of 400 watts Die Boards Plywood Laser Cutting Machine

Model No.	ADW-LC400
Laserpower	400W Single head
Working area	Width1200mm x Length1800mm
Driving style	Fixed laser line path(the laser head fixed, the material body moved)
Cutting speed	400watts:30-35 meters/hour,18mm plywood

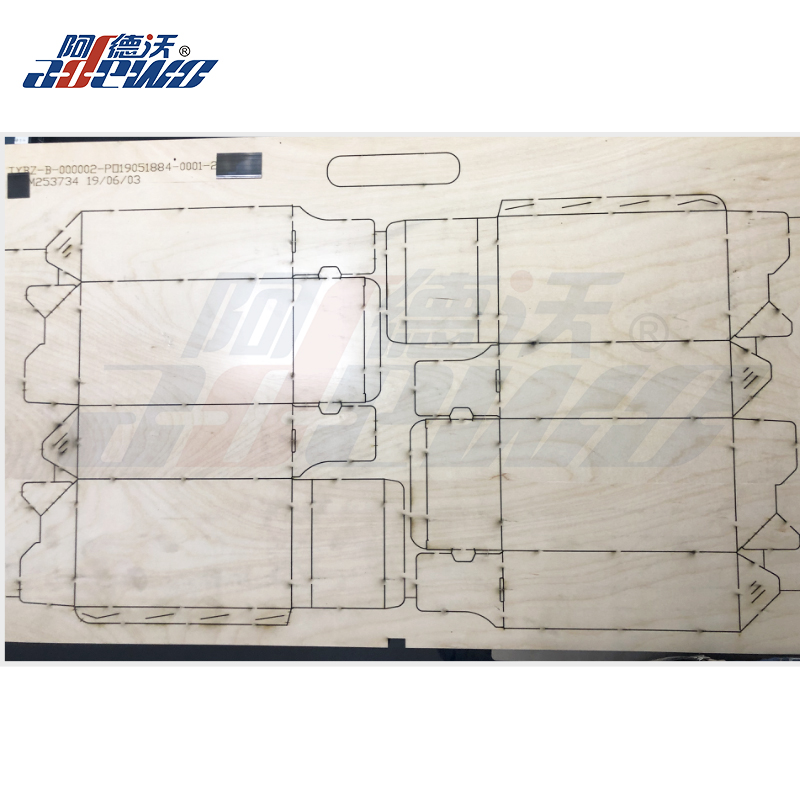

Cutting materials and thickness	6-9-15-18-22mm plywood,PVC Board,Acrylics and Less than 3mm steel rule.
Cooling water temperature	5℃-30℃

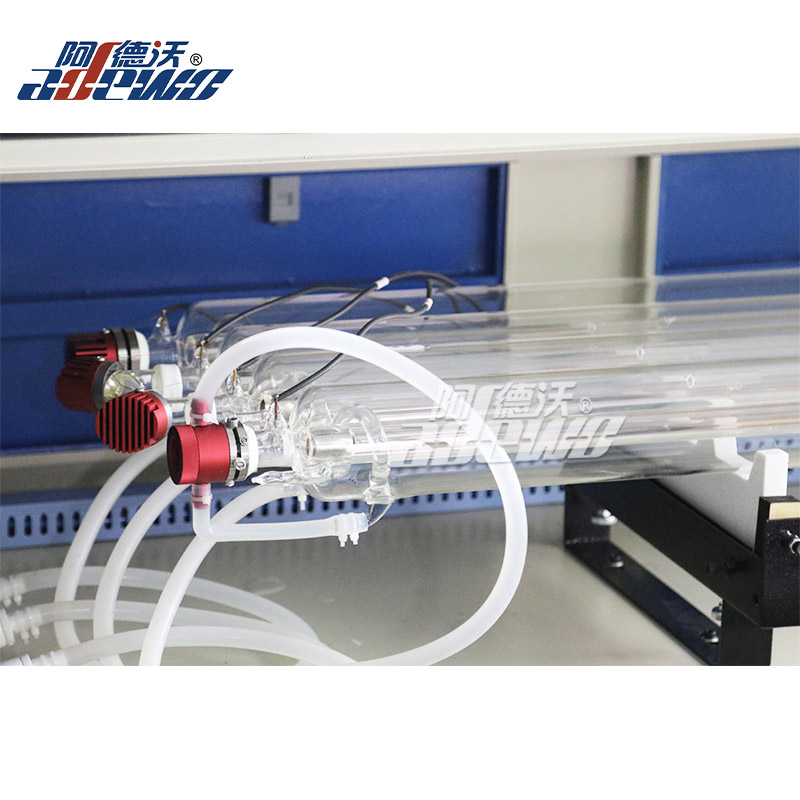

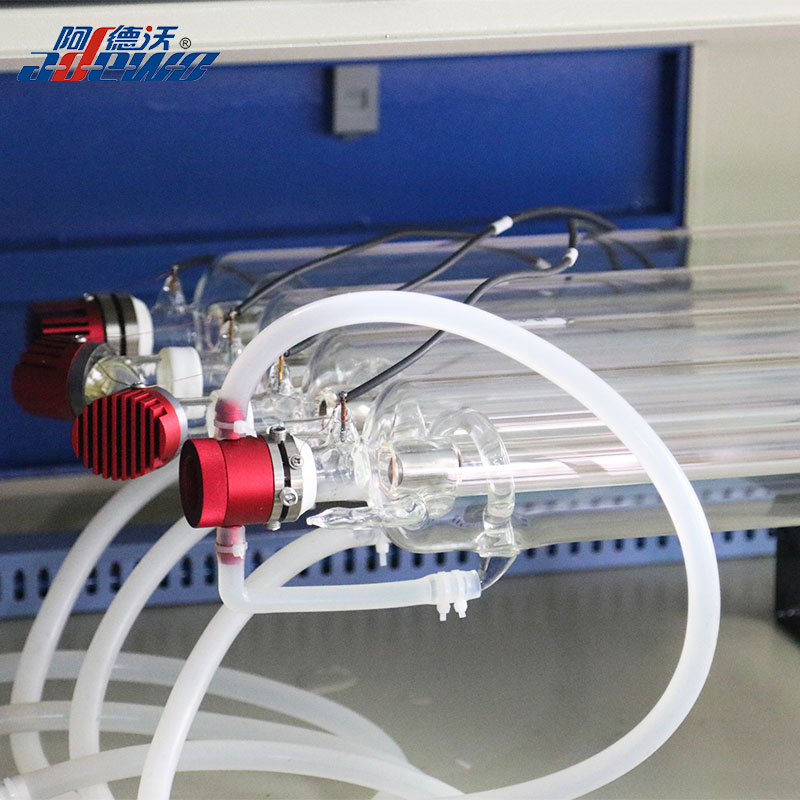

Laser type	CO2 sealed of glass laser

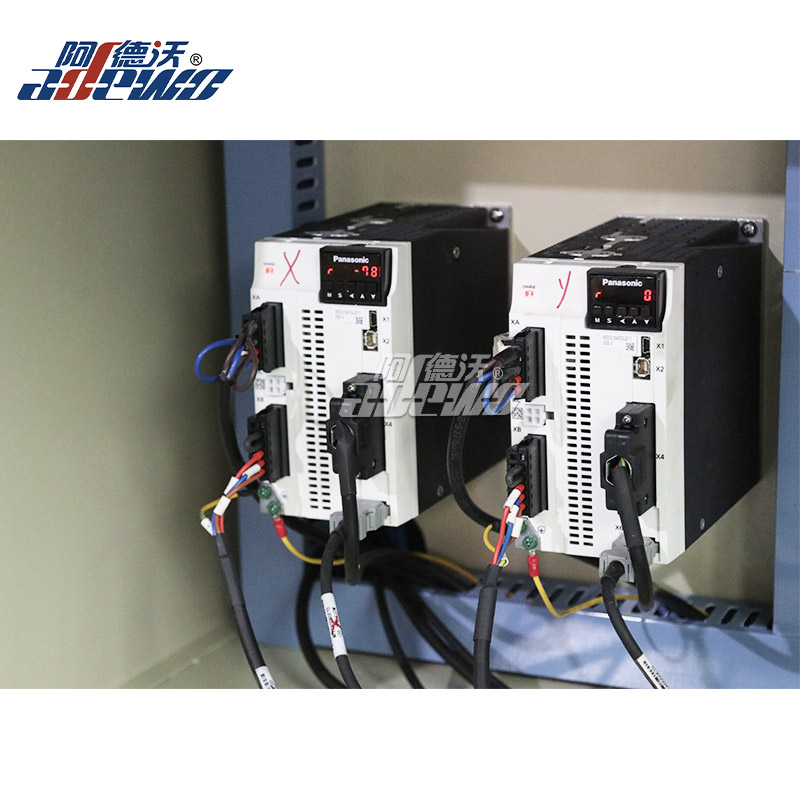

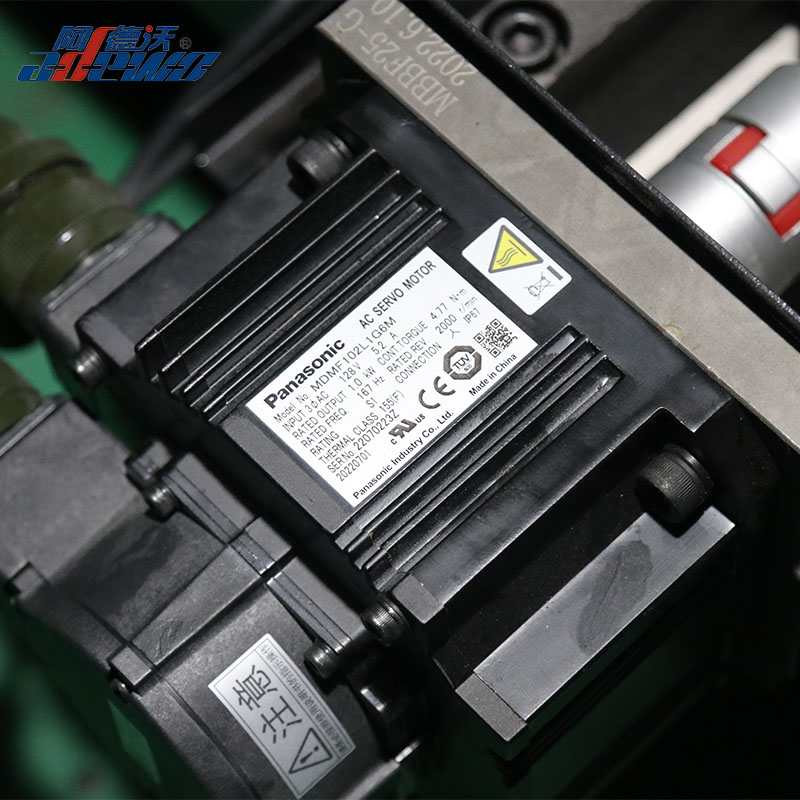

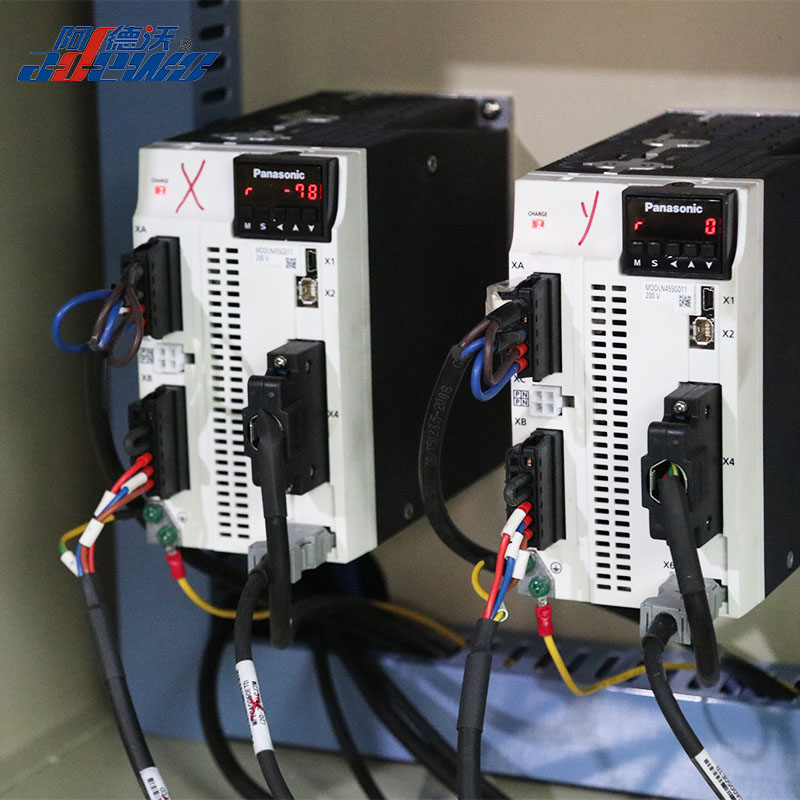

Driving system	Servo motor system
Blade thickness	0.45mm,0.71mm,1.05mm,1.07mm…ect
Cutting precision	±0.05mm
Figure format	AL, DST, PLT, BMP, DXF
Supporting software	CorelDraw,AutoCAD,photoshop
Cooling system	Water cooling
Operating temperature	1℃~40℃

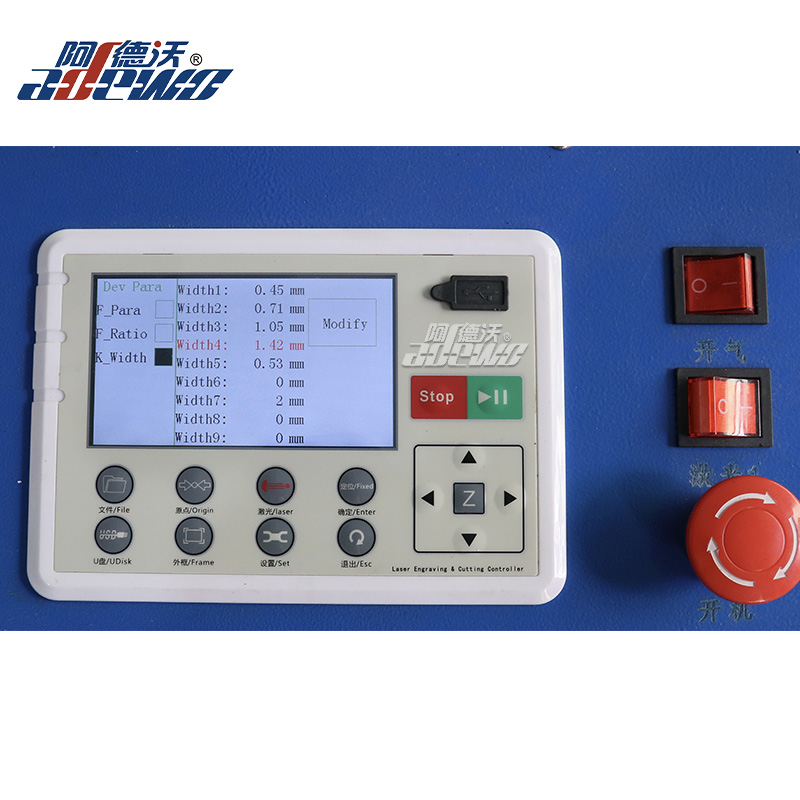

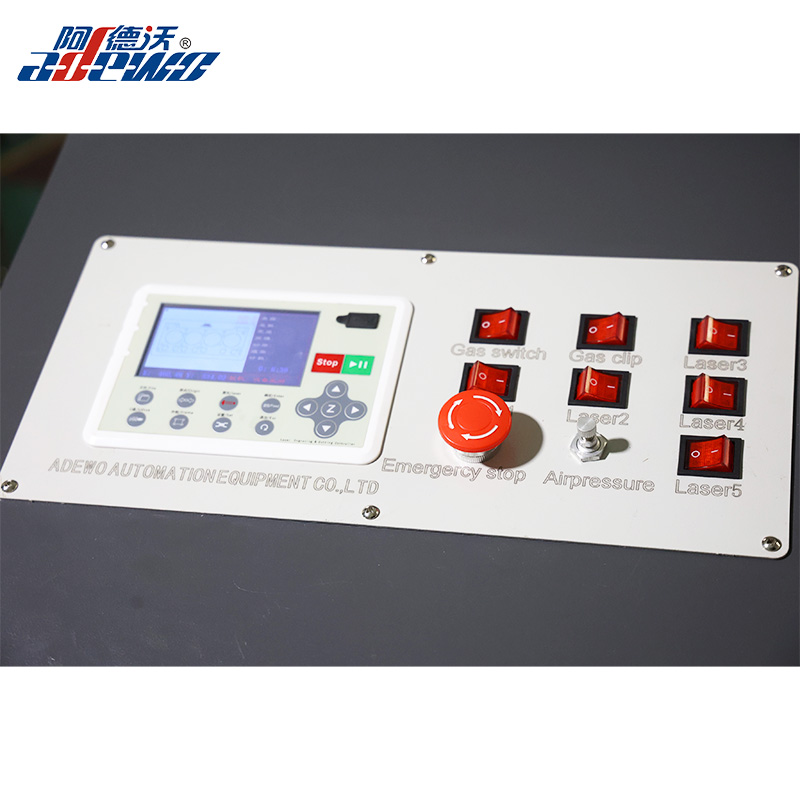

Numerical control panel	LCD screen,Light-touched key-press off-line condition
EMS memory	Attached 32MB memory, can work under off-line condition
Assistant equipments(Free)	Industrial chiller ,Exhaust fans,Computer system,Compressed Air Filter
Power supply	Single Phase220V,50Hz/60Hz 10A
Total power	5KW
Machine size（stand still）	L4120xW2800xH1530mm
Machine size（working）	L4320xW3880xH1530mm
Machine weight	1800kg
H.S. Code	8456110090

3.FAQ:

1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time of 400 watts Die Boards Plywood Laser Cutting Machine?
10-15 working days.

4.How about installation and training of 400watts Die Boards Plywood Laser Cutting Machine?
English software, installation, related training user manual and videos are available for end-users.

We provide remote support to customers all over the world.

Our technical service is always available atservices@china-adewo.com

5.What’s the cutting speed of this 400watts Die Boards Plywood Laser Cutting Machine?
30-35 meters/hour,18mm plywood by 400 watts Flat Dies Plywood Laser Cutting Machine ; High precision, cutting precision is +-0.05mm; Smooth cutting, CO2 CNC laser cutting; Lower noise.
