Auto Bender Machine

(ABM-832A1)The Latest Steel Rule Auto Bender Machine

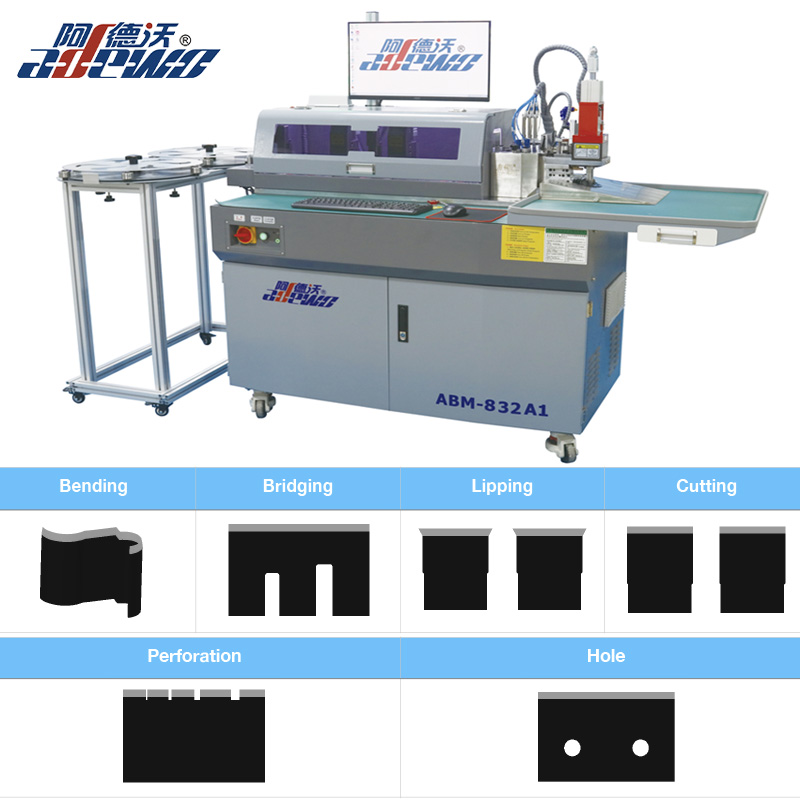

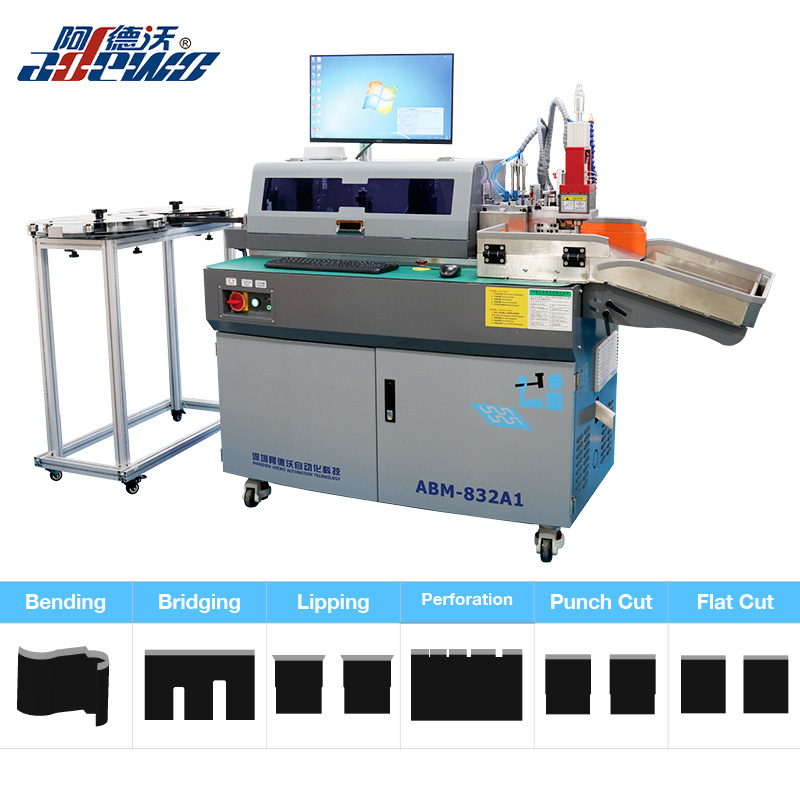

Picture of (ABM-832A1)New Steel Rule Auto Bender Machine with Perforation for reference:

Product Features:

1.Multi-Functions：All functions in one machine. (ABM-832A1)The Latest Steel Rule Auto Bender Machine with Bending,Bridge,Perforation,Hole,Lipping and Cutting.

2.Bending System:The Bending&Cutting in one tool that increase cutting speed, no need to hold the short dies by hand when cutting.Smart safety protection can effectively avoid the accident.

3.Punching Tools are separately which more convenient of replacement and save cost.

4.Lipping Tool, Cutting Tool and Perforation Tool are customization according to the edge of the steel rule which you use, to get high precision lipping size, cutting and perforation.

5.Feeding System: (ABM-832A1)The Latest Steel Rule Auto Bender Machine with double feeding clips which improves feeding speed and more stable.

6.Software System:(ABM-832A1)The Latest Steel Rule Auto Bender Machine with newly developed software,Chinese-English language can be selected optionally by users.Friendly software and easy to operate.

Technical Parameters of (ABM-832A1)The Latest Steel Rule Auto Bender Machine

Supported rule thickness(mm)	0.71mm&1.05mm (2pt&3pt)
Supported rule height(mm)	8-32mm
Bridge height	18mm&15mm adjustable
Bridge width	Over 5mm any sizes available. (Can be customized)
Front Min. bending size	1.5MM
Back Min. cutting size	1.5MM
Feeding precision	±0.03mm
Bending flatness	±0.2mm
Basic Functions	Bending,Bridge,Lipping,Cutting
Optional Functions	Perforation/Hole
Optimal pattern format	DXF,DWG
Air supply	0.4-0.8mpa
Power supply	Single Phase AC220V,13.6A,50-60Hz
Machine total power	3KW
Weight	480KGS
Overall dimension	2650x800x1600mm(LxWxH)
H.S. Code	8462230000

FAQ:

1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time?
7-10 working days.

4.How about installation and training of (ABM-832A1)The Latest Steel Rule Auto Bender Machine？
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.

Our technical service is always available at services@china-adewo.com

5.Any spare tools are included of The Latest Steel Rule Auto Bender Machine?
Yes,the new order machine with free spare tools.
