ABM-860C2 High Steel Rule Auto Bending Machine with Broach included functions:Bending,Broaching,Bridge,Nicking,Perforation,Lipping and Mold Cut,Flat Cut. Supported steel rule thickness 0.71,105,1.42mm,height 23.80-60mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.
As the professional manufacture, we would like to provide you High Steel Rule Auto Bending Machine with Broach. And we will offer you the best after-sale service and timely delivery.We do everything we can to add value to our customers' experiences, allowing us to be their best option.

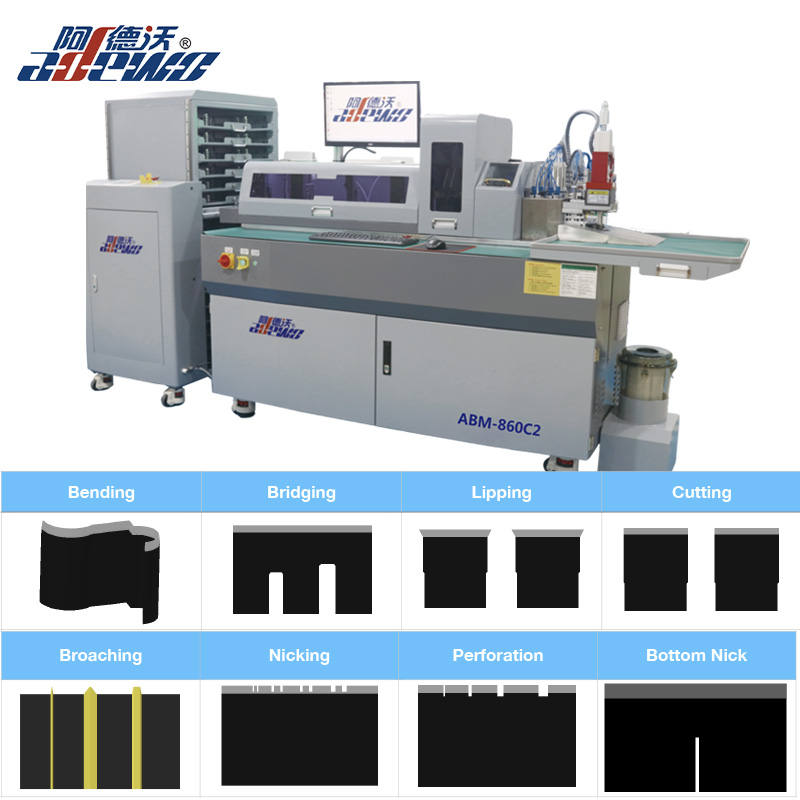

Picture of (ABM-860C2) High Steel Rule Auto Bending Machine with Broach for reference:
1.Multi-Functions:All functions in one machine.(ABM-860C2) High Steel Rule Auto Bending Machine with with Bending,Bridge,Nicking,Perforation,Hole,Lipping and Cutting.
2.Bending System:The Bending&Cutting in one tool that increase cutting speed, no need to hold the short dies by hand when cutting.Smart safety protection can effectively avoid the accident.
3.Punching Tools are separately which more convenient of replacement and save cost.
4.Lipping Tool, Cutting Tool and Perforation Tool are customization according to the edge of the steel rule which you use, to get high precision lipping size, cutting and perforation.
5.Feeding System: double feeding clips which improves feeding speed and more stable.
6.Software System: newly developed software,Chinese-English language can be selected optionally by users.Friendly software and easy to operate.
|
Supported rule thickness(mm) |
0.71,1.05,1.42mm (2pt&3pt&4pt) |
|
Supported rule height(mm) |
23.80-60mm |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.0MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
±0.2mm |
|
Basic Functions |
Bending,Bridge,Nicking,Lipping,Broaching, Mold Cut,Flat Cut |
|
Optional Functions |
Perforation/Hole,Cut Crease,Bottom Nick |
| Broaching Set | Single set Broaching/Double set Broaching |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8mpa |
|
Power supply |
AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
548KGS |
|
Overall dimension |
3100x800x1600mm(LxWxH) |
|
H.S. Code |
8462230000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time?
7-10 working days.
4.How about installation and training of High Steel Rule Auto Bending Machine?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
5.Any spare tools are included of the High Steel Rule Auto Bending Machine?
Yes,the new order machine with free spare tools.
