ABM—832C1 Multi-Functions Label Rule Auto Bending Machine included functions：Bending,Bridge,Broaching,Nicking,Perforation,Hole,Bottom Notch,Lipping and Cutting. Supported steel rule thickness 0.45,0.53,0.71mm,height 8-32mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.
You can rest assured to buy Multi-Functions Label Rule Auto Bending Machine from our factory and we will offer you the best after-sale service and timely delivery.Our principle is “to achieve zero defects through continuous improvement, to satisfy our customers’ needs and expectations,to make commitments we fully understand and believe we can meet and to meet all commitments to customers on time. Products and services are the life of an enterprise. We have always attached great importance to product quality and after-sales tracking services. We strive to provide customers with satisfactory products and services through our own efforts. If you have questions about product use and functions, you can contact us 24 hours a day. We get in touch.

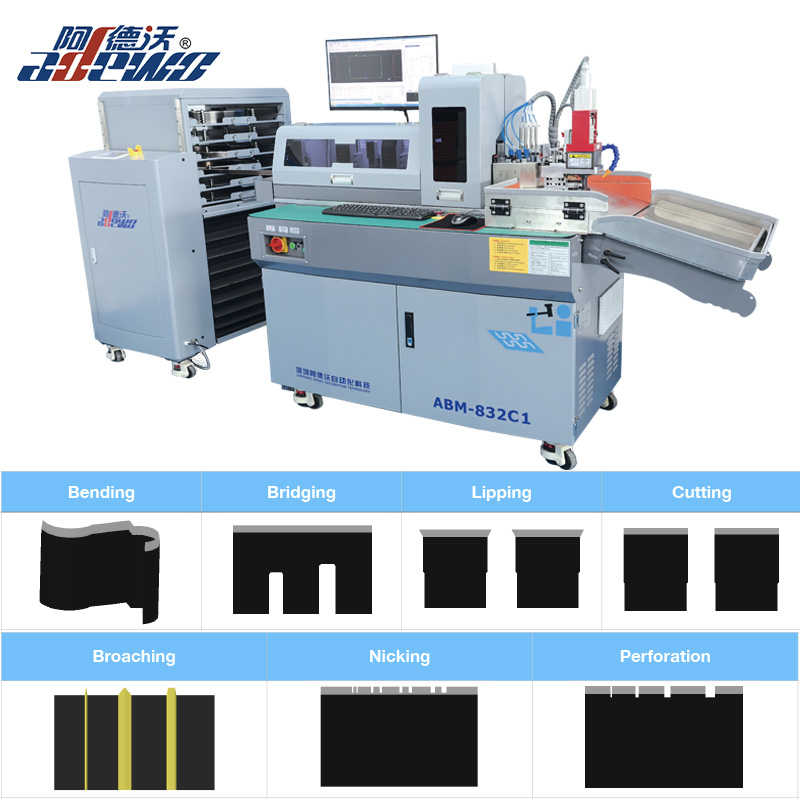

Picture of (ABM—832C1)Multi-Functions Label Rule Auto Bending Machine for reference:
1.Multi-Functions：All functions in one machine.(ABM—832C1)Multi-Functions Label Rule Auto Bending Machine with Bending,Bridge,Broaching,Nicking,Perforation,Hole,Lipping and Cutting.

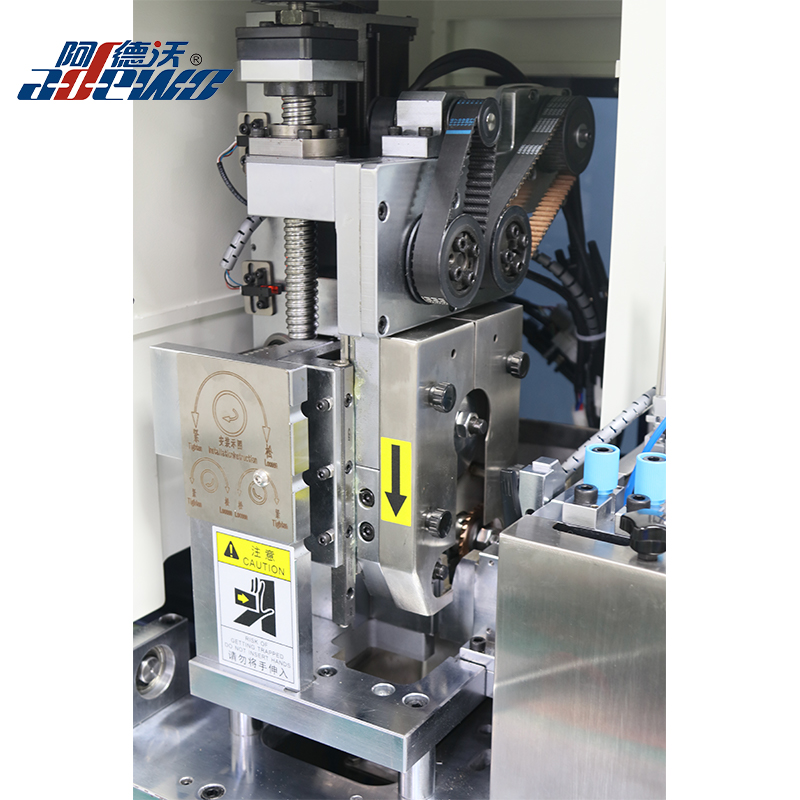

2.Bending System:The Bending&Cutting in one tool that increase cutting speed, no need to hold the short dies by hand when cutting.Smart safety protection can effectively avoid the accident.

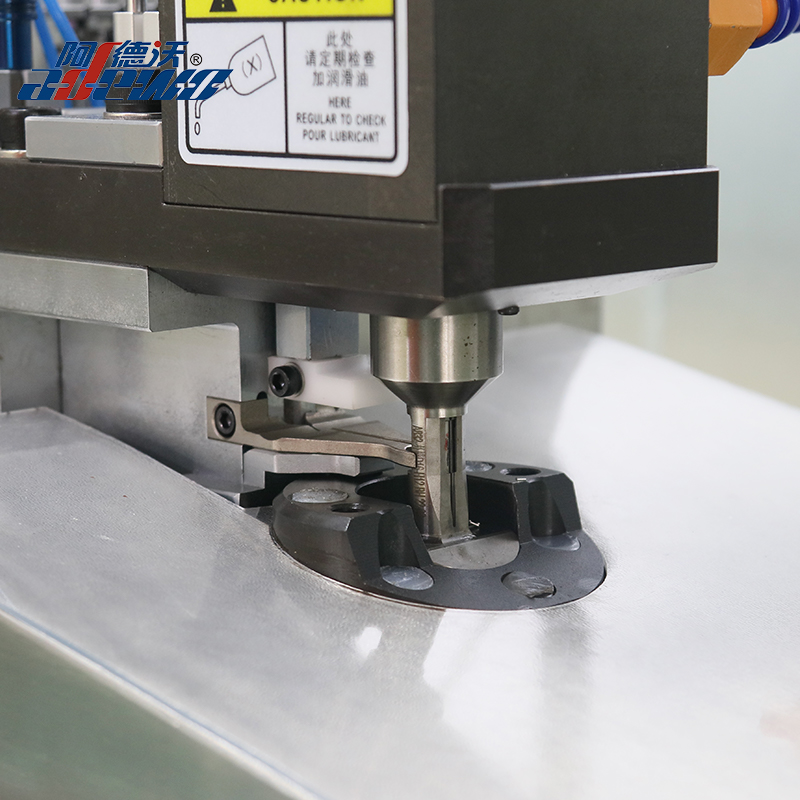

3.Punching Tools are separately which more convenient of replacement and save cost.
4.Lipping Tool, Cutting Tool and Perforation Tool are customization according to the edge of the steel rule which you use, to get high precision lipping size, cutting and perforation.
5.Multi-layer rule tray which is convenient to distinguish different die boards and loading.
6.Software System:This Multi-Functions Label Rule Auto Bending Machine with newly developed software,Chinese-English language can be selected optionally by users.Friendly software and easy to operate.
7.Automatic Rule Cassette with display：Independent 6 floors rule cassette that the height can be adjusted by display. Smart safety protection can effectively avoid the accident.
|
Supported Rule Thickness |
0.45, 0.53, 0.71mm |
|
Supported Rule Height |
8-32mm |
|
Front Min. Bending Size |
1.5mm |
|
Back Min. Bending Size |
1.0mm |
|
Feeding Precision |
±0.03mm |
|
Bending Flatness |
0.2mm |
|
Basic Functions |
Bending,Mold Cut, Lipping, Bridging,Hole,Plane Cut |
|
Optional Functions |
Broaching,Nicking,Bottom Notch,Perforation |
|
Broaching |
Single set Broaching/Double set Broaching can be selected |
|
Supported File Formats |
DXF, DWG |
|
Air Supply |
0.4-0.8Mpa |
|
Power Supply |
AC220V, 13.6A, 50-60Hz |
|
Total Power |
3KW |
|
Overall Dimension |
2600*800*1600mm(LxWxH) |
|
Machine Weight |
528KG |
|
HS CODE |
8462219000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time?
7-10 working days.
4.How about installation and training of Multi-Functions Label Rule Auto Bending Machine
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
5.Any spare tools are included of Multi-Functions Label Rule Auto Bending Machine?
Yes,the new order machine with free spare tools.
