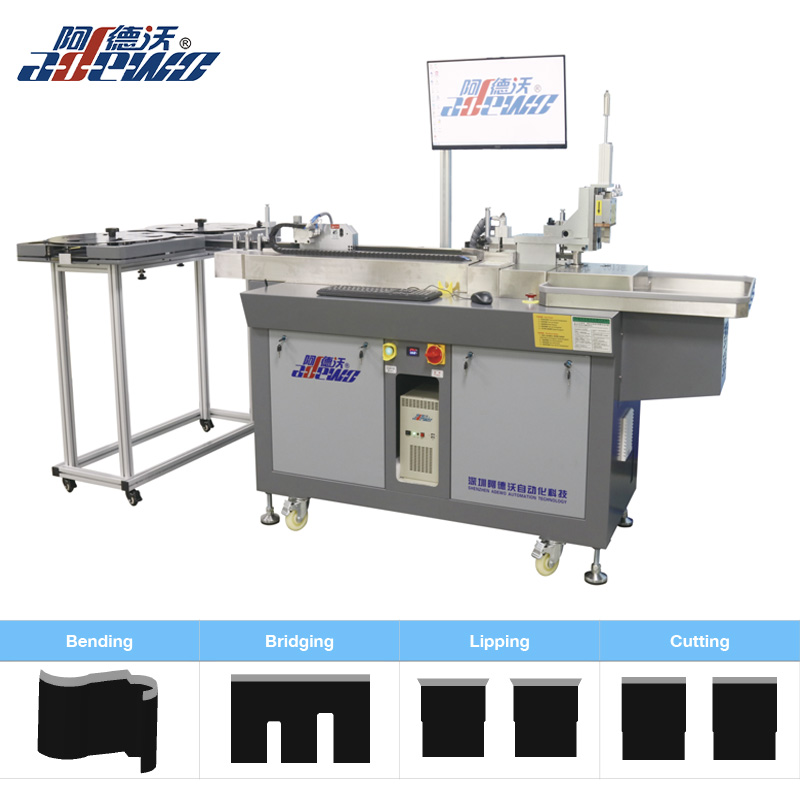

(ABM-8165A) Shoes Mould Dies Auto Bender included functions:Bending,Bridge,Lipping and Cutting. Supported steel rule thickness 0.71/1.05/1.42/1.5/1.6/1.65/2mm × height 23.80-32mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.

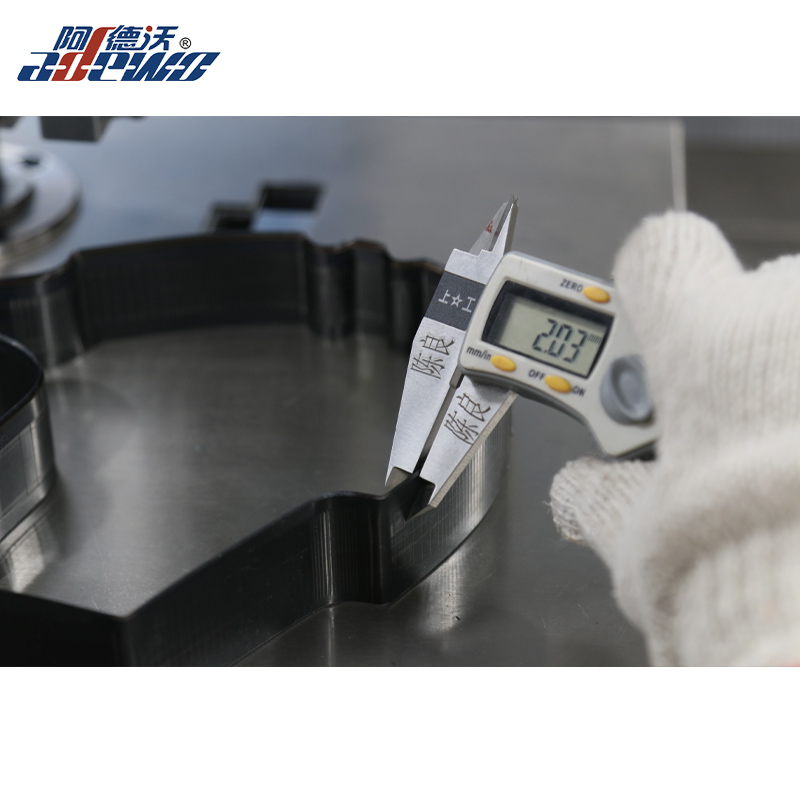

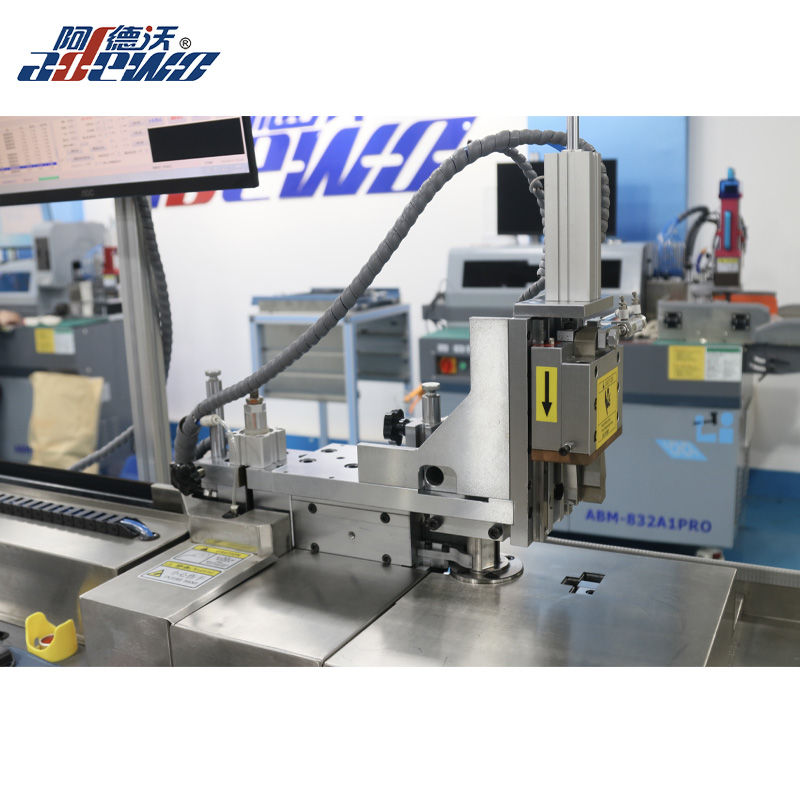

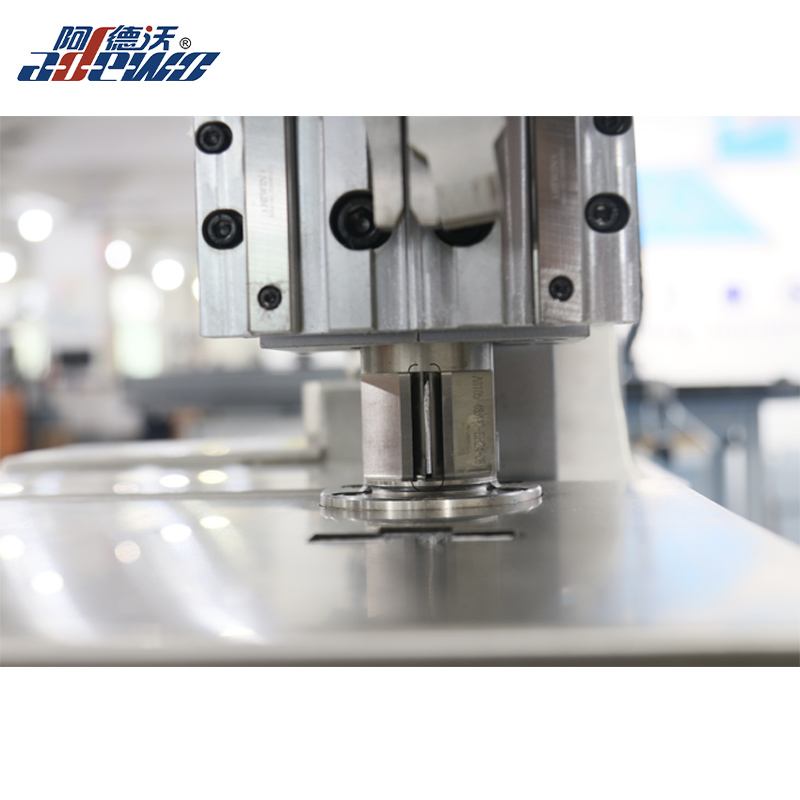

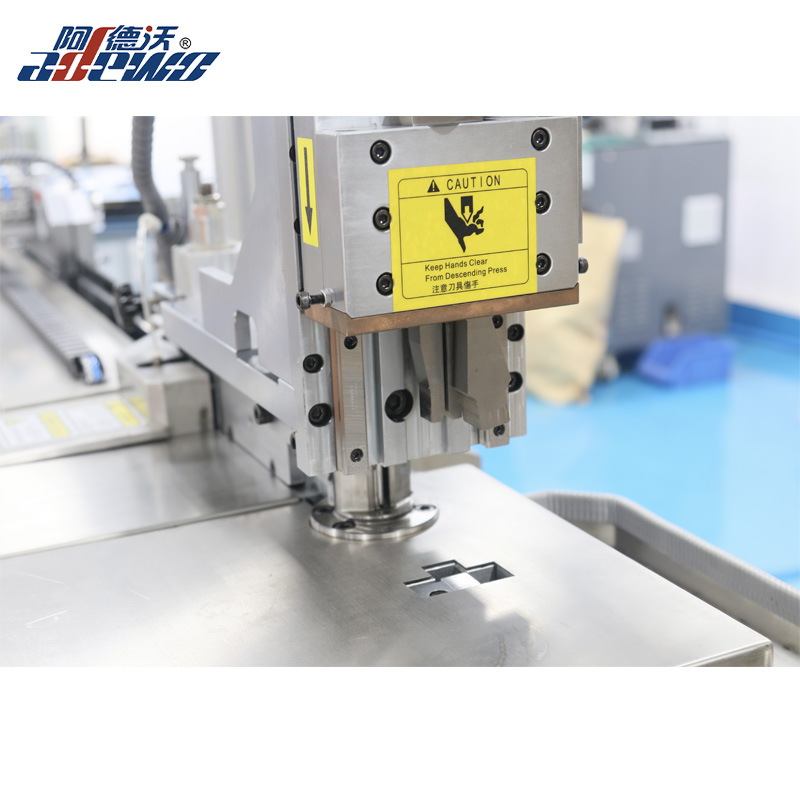

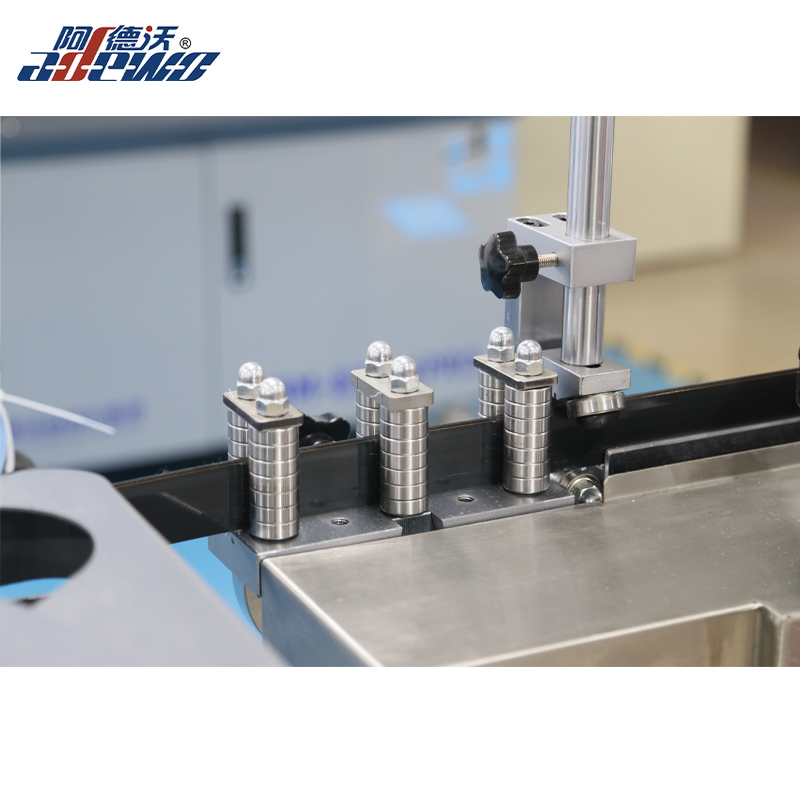

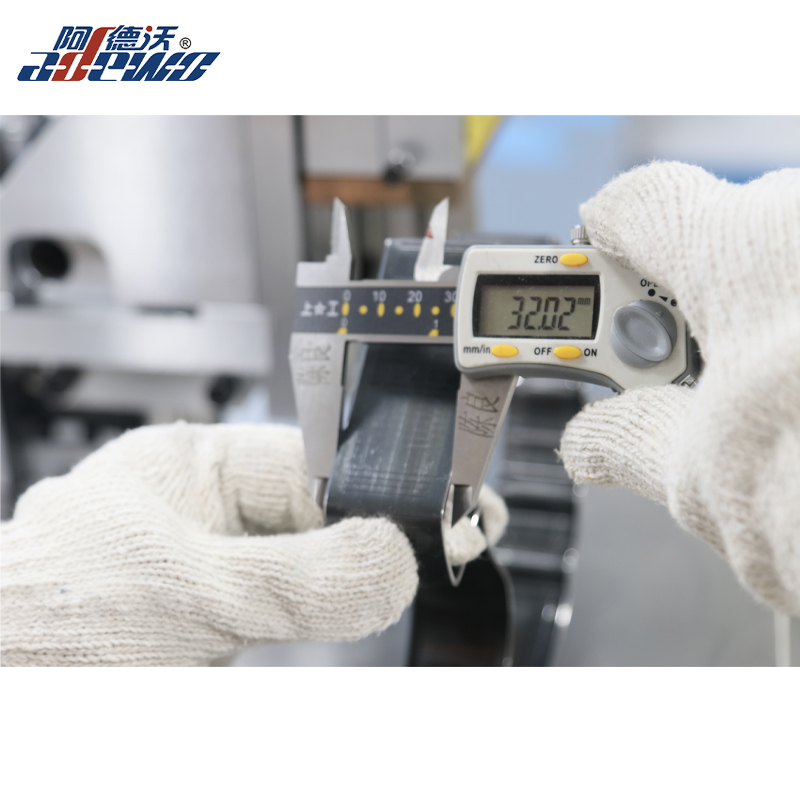

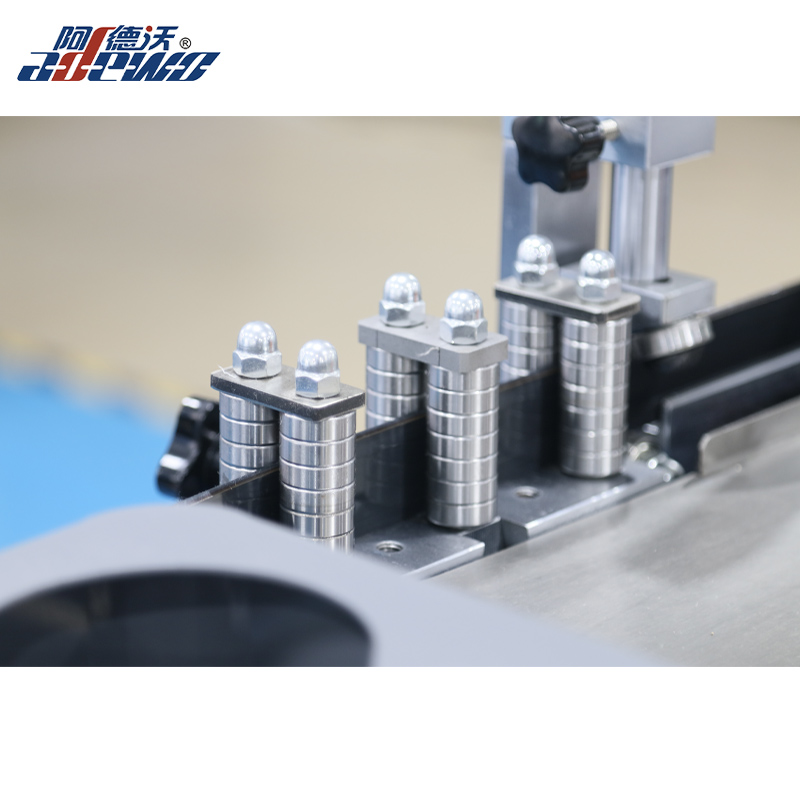

Picture of (ABM-8165A) Shoes Mould Dies Auto Bender for reference:

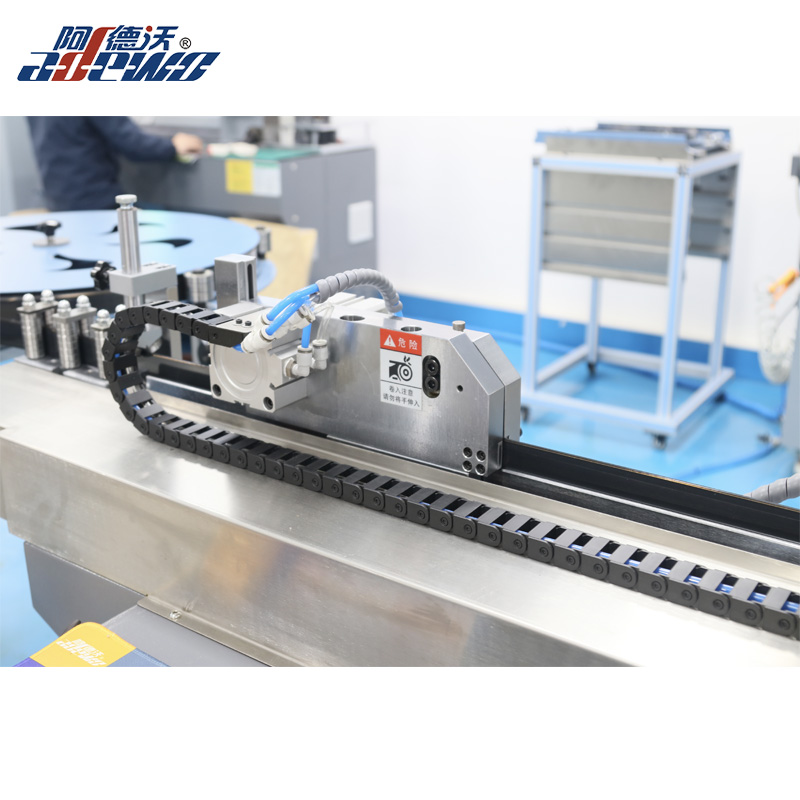

2.This (ABM-8165A) Shoes Mould Dies Auto Bender uses Panasonic Servo motor system, high precise ball-screw guide feeding system.
3.Smart software and easy to operate, multi language operations;
4. Save production time and easy for die making by (ABM-8165A) Shoes Mould Dies Auto Bender.
|
Supported rule thickness(mm) |
0.71,1.05,1.42,1.5,1.6,1.65,2mm |
|
Supported rule height(mm) |
23.80-32mm |
|
Max Bending Angle |
95° |
|
Min. ARC radius of 90 degree |
±0.3MM |
|
Front Min. cutting size |
2.5MM |
|
Back Min. cutting size |
1.0MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
±0.2mm |
|
Functions |
Bending,Bridging,Cutting,Pneumatic Lipping |
|
Cutting methods |
Break off and Auto flat cutting |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8mpa |
|
Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
450KGS |
|
Overall dimension |
2800x1050x1600(L×W×H) |
|
H.S. Code |
8462230000 |
