ABM-860B2 Stripping Dies High Rule Auto Bending Machine included functions：Bending,Bridge,Nicking,Perforation,Lipping and Cutting. Supported steel rule thickness 0.71,105,1.42mm,height 23.80-60mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.
You can rest assured to buy Stripping Dies High Rule Auto Bending Machine from our factory and we will offer you the best after-sale service and timely delivery.We hope to establish friendly cooperative relationship with your company with high quality products, reasonable price, considerate service and create a better future hand in hand.

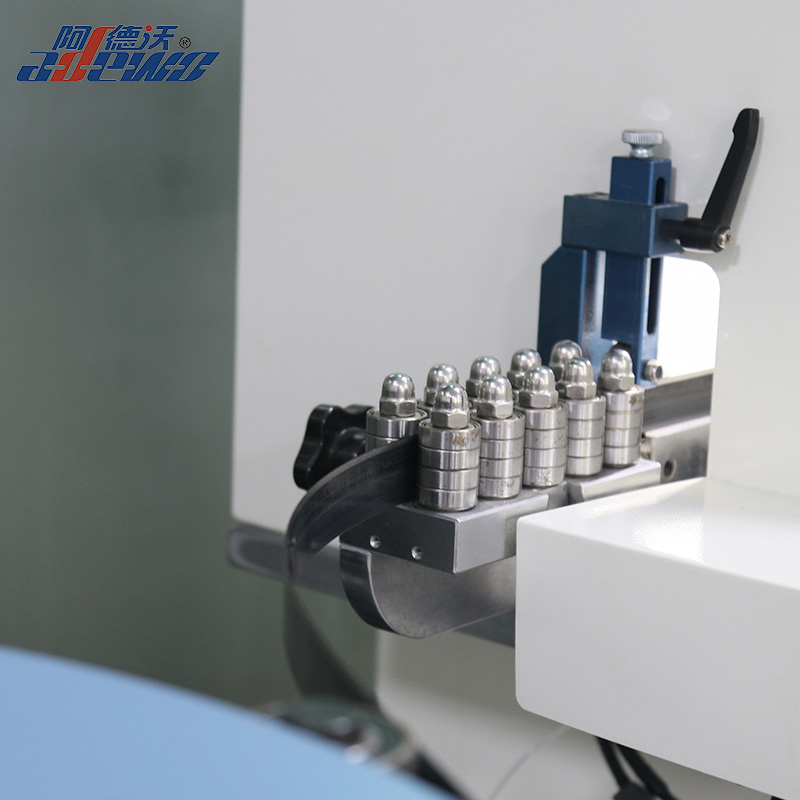

Picture of (ABM-860B2) Stripping Dies High Rule Auto Bending Machine for reference:
1.Multi-Functions:All functions in one machine.(ABM-860B2) Stripping Dies High Rule Auto Bending Machine with Bending,Bridge,Nicking,Lipping and Cutting,Perforation and Hole optional.
2.Bending System:The Bending&Cutting in one tool that increase cutting speed, no need to hold the short dies by hand when cutting.Smart safety protection can effectively avoid the accident.
3.Punching Tools are separately which more convenient of replacement and save cost.
4.Lipping Tool, Cutting Tool and Perforation Tool are customization according to the edge of the steel rule which you use, to get high precision lipping size, cutting and perforation.
5.Feeding System:This Stripping Dies High Rule Auto Bending Machine with double feeding clips which improves feeding speed and more stable.
6.Software System:This Stripping Dies High Rule Auto Bending Machine with newly developed software,Chinese-English language can be selected optionally by users.Friendly software and easy to operate.
|
Supported rule thickness(mm) |
0.71,1.05,1.42mm (2pt&3pt&4pt) |
|
Supported rule height(mm) |
23.80-60mm |
|
Bridge height |
18mm&15mm adjustable |
|
Bridge width |
Over 5mm any sizes available. |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.5MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
±0.2mm |
|
Basic Functions |
Bending,Bridge,Nicking,Lipping,Cutting |
|
Optional Functions |
Perforation/Hole |
|
Cutting methods |
Bend Cut |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8mpa |
|
Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
578KGS |
|
Overall dimension |
2650x800x1600mm(LxWxH) |
|
H.S. Code |
8462230000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDU
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time?
7-10 working days.
4.How about installation and training of Stripping Dies High Rule Auto Bending Machine
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
5.Any spare tools are included of the Stripping Dies High Rule Auto Bending Machine ?
Yes,the new order machine with free spare tools.
