(ADW-WJ) Water Jet Cutting Machine with fast cutting speed, high precision, smooth cutting and lower noise. China Adewo has been successful for many domestic and foreign enterprises to provide advanced Water Jet Cutting Machine, Laser Cutting machine,Auto Bender Machine,Creasing Cutting Machine, technical support and excellent after sales service.
Water Jet Cutting Machine
Shenzhen Adewo Automation Technology Co.,ltd. is China manufacturer & supplier who mainly produces European Manual Bridge Machine, Water Jet Cutting Machine, Small Table Plywood Laser Cutting Machine, Die Boards Steel Rule Puller with many years of experience. Hope to build business relationship with you.

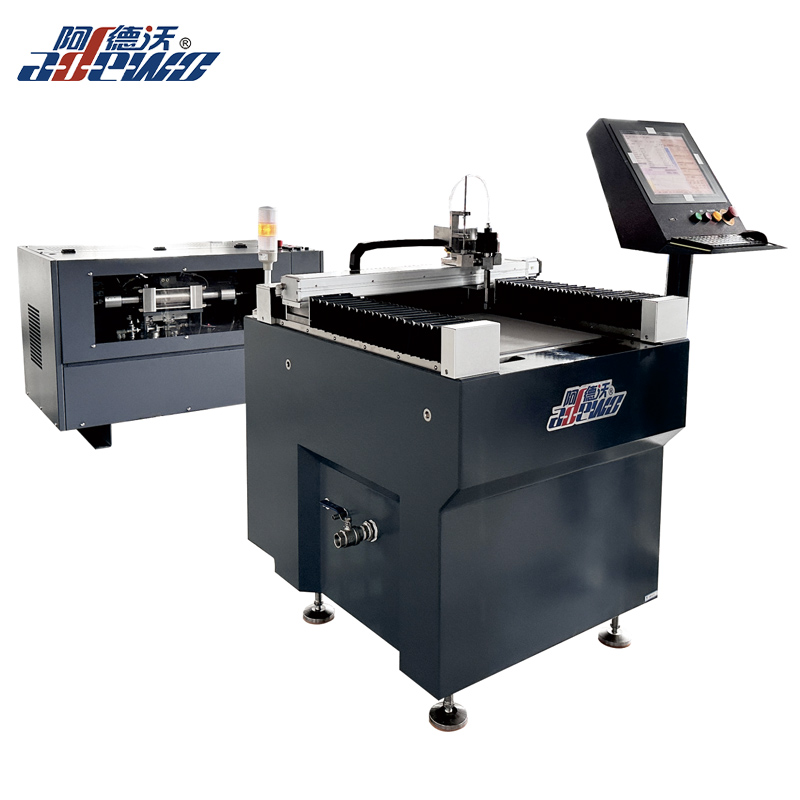

Picture of (ADW-WJ)Water Jet Cutting Machine for reference:
1.Product Features:
1.Mineral casting body assures long term stability and accuracy;
2.Servo motor drive Dual-belt transmission structure;
3.Linear guiding system made by Stainless and aluminum extruded sections with high strucural rigidity;
4.Stainless steel honeycomb grid with long durability;
5.Professional rubber built and nest software impact;
6.Direct DXF file data drive cutting, transferred via network.
2.Technical Parameters of Water Jet Cutting Machine
Cutting accuracy (Depend on the material
texture and thickness)
X-Y cutting range
510×510mm
Max cutting thickness
60mm
Standard cutting speed
5m/min
Max cutting speed
30m/min
Cutting material
Rubber, Sponse
Power transmission and guiding system
Servo motors system
Driving and control
Servo motors system
Control Software
PRC
File format
DXF, PLF, ENG, G-code, CF2
High pressure pump
Pump with major components imported
Pump power and Max pressure
7.5kw, 300Mpa
Water Flow Rate
>1L/min
0.1~0.3mm
Positioning accuracy
<0.08mm
Positioning speed
30m/min
Laying on grid
Honey comb structure of stainless steel
Air consumption
0.6Mpa
Power supply
Three phase 380V, 50-60Hz
Machine Dimension
1486×1110×1402mm
High pressure pump dimension
1480×870×920mm
Machine weight
1100KGS
High pressure pump weight
800KGS
3.FAQ:
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time of Water Jet Cutting Machine?
10-15 working days.
4.How about installation and training of Water Jet Cutting Machine?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com.
