Wooden Die Making Creasing Auto Cutting Machine

As the professional manufacture, we would like to provide you Wooden Die Making Creasing Auto Cutting Machine. And we will offer you the best after-sale service and timely delivery. You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Wooden Die Making Creasing Auto Cutting Machine. We look forward to cooperating with you.

Model:ABM-X1C

Send Inquiry

Product Description

Wooden Die Making Creasing Auto Cutting Machine

You can rest assured to buy customized Wooden Die Making Creasing Auto Cutting Machine from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

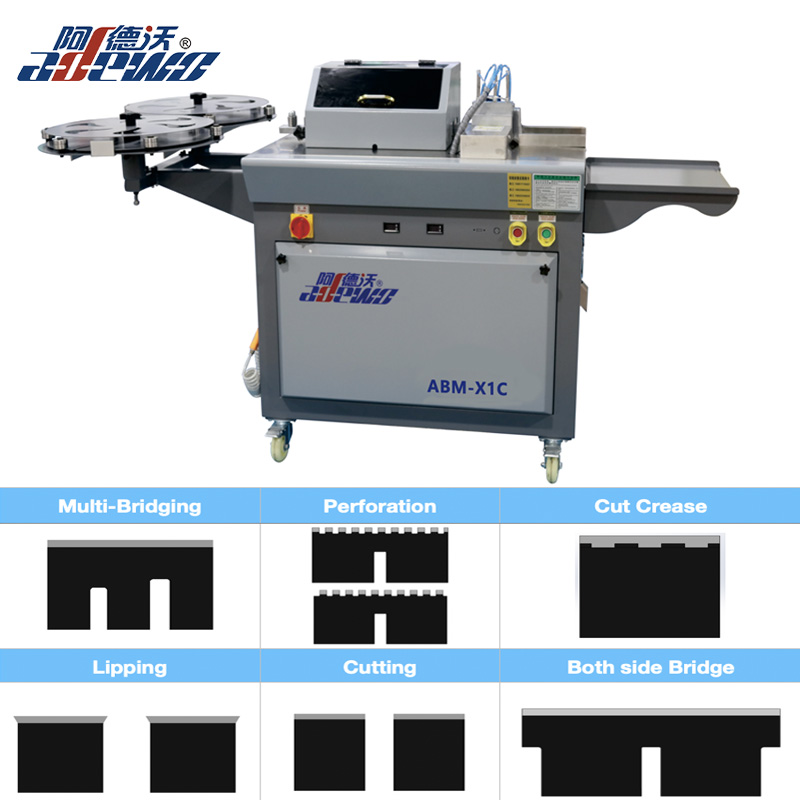

Picture of (ABM-X1C)Wooden Die Making Creasing Auto Cutting Machine for reference:


1.Product Features:

1.(ABM-X1C)Wooden Die Making Creasing Auto Cutting Machine included functions:Bridge,Lipping,Cutting,Both side Bridge.

Optional functions:Perforation,Cut Crease

2.This Wooden Die Making Creasing Auto Cutting Machine supported 2pt,3pt,4pt cutting rule and creasing rule,easy to change different steel rules.


3.The length of creasing rule/cutting rule can be identify quickly by the smart software, finish auto bridge and auto cutting in few minutes.

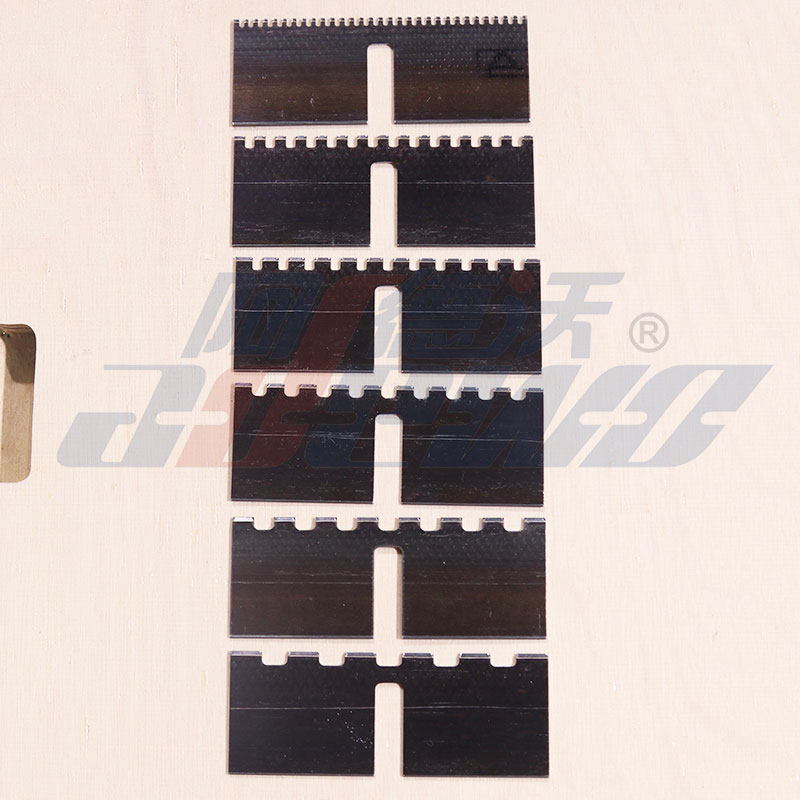

4.The different size of Bridge,Perforation,Cut Crease can be customized to meet different requirements of die boards.

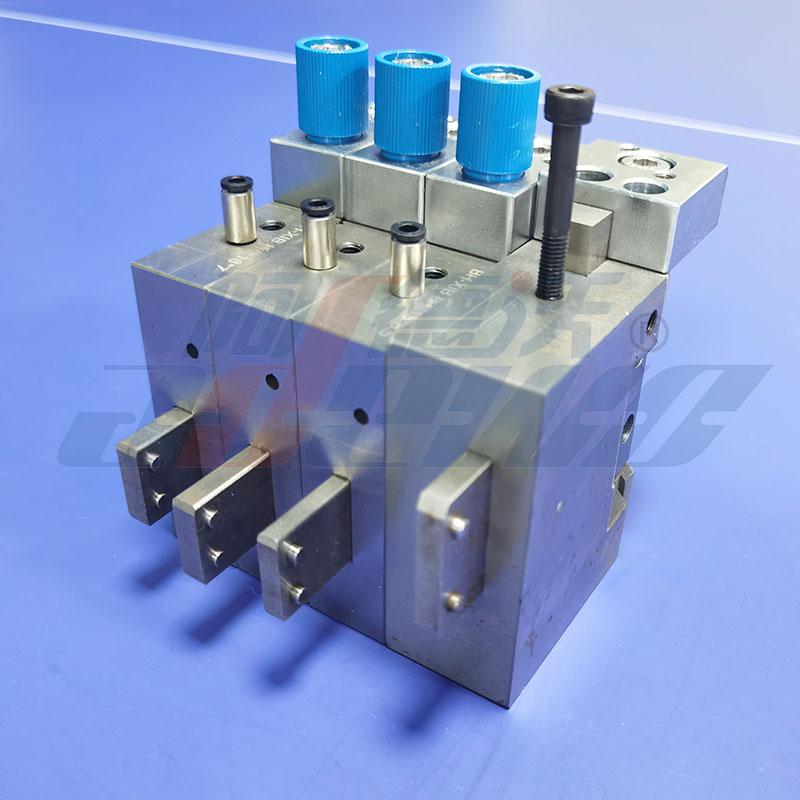

5.Lipping Tool,Perforation tool,Cut Crease tool are customize based on the cutting rule bevel degree, to get high precision size.

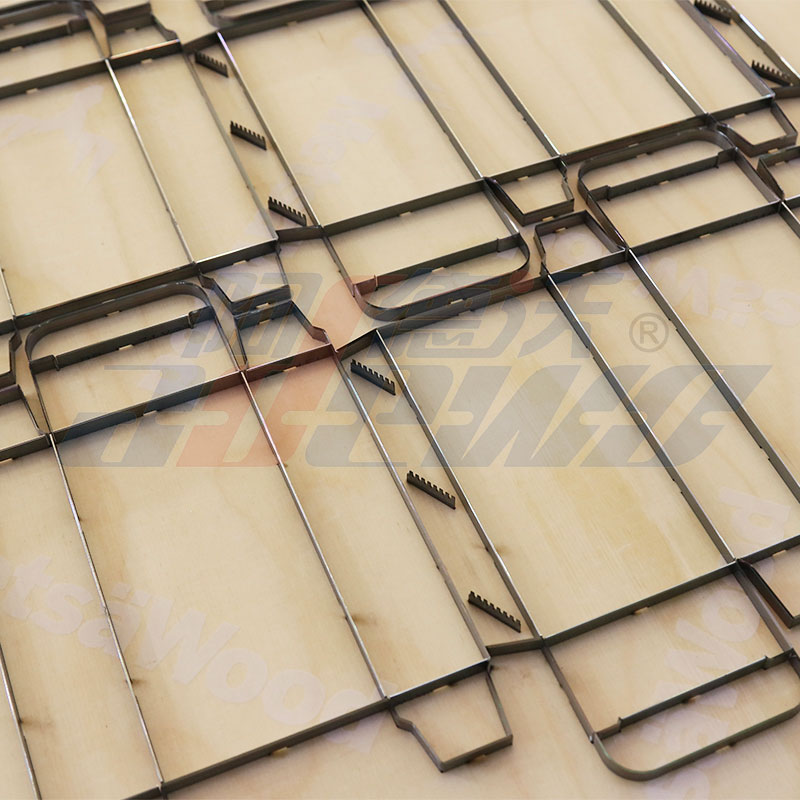

6.This Wooden Die Making Creasing Auto Cutting Machine is widely used in die making of carton box, paper box, cardboard, paper bag,corrugated and etc.



2.Technical Parameters of Wooden Die Making Creasing Auto Cutting Machine

Supported rule thickness(mm)

0.71,1.05,1.42mm (2pt,3pt,4pt)

Supported rule height(mm)

22-26mm

Basic Functions

Bridge,Lipping,Cutting,Both side Bridge

Optional Functions

Perforation,Cut Crease

Optimal Graphic Format

DXF,DWG

Air supply

0.4-0.8mpa

Power supply

220V,2KW

Weight

260KGS

Overall dimension

1220×760×1200mm(L×W×H)

H.S. Code

8461500090


3.FAQ:

1.What’s price term?

(1)FOB Shenzhen China

(2)CIF

(3)DDP



2. What’s payment term?

30% T/T as down payment, 70% T/T before delivery.



3.What about lead time of Wooden Die Making Creasing Auto Cutting Machine?

7-10 working days.



4.How about installation and training of Wooden Die Making Creasing Auto Cutting Machine?

English software, installation, related training user manual and videos are available for end-users.

We provide remote support to customers all over the world.

Our technical service is always available at services@china-adewo.com



5.Any spare tools are included of Wooden Die Making Creasing Auto Cutting Machine?

Yes,the new order machine with free spare tools.
