2PT 3PT Steel Rule Auto Bender Machine Puzzle Die included functions：Bending,Bridge,Perforation,Lipping and Cutting. Supported steel rule thickness 0.45,0.53,0.71,1.05mm,height 8-32mm. China Adewo has been successful for many domestic and foreign die making&printing companies to provide advanced Auto Bender Machines, cost effective,technical support and excellent after sales service.
As a professional high quality 2PT 3PT Steel Rule Auto Bender Machine manufacture, you can rest assured to buy 2PT 3PT Steel Rule Auto Bender Machine from our factory and we will offer you the best after-sale service and timely delivery.We have the distinct advantage because the success of our company is directly related to each and every individual. We take pride in all we do, and we take pride in a job well done.

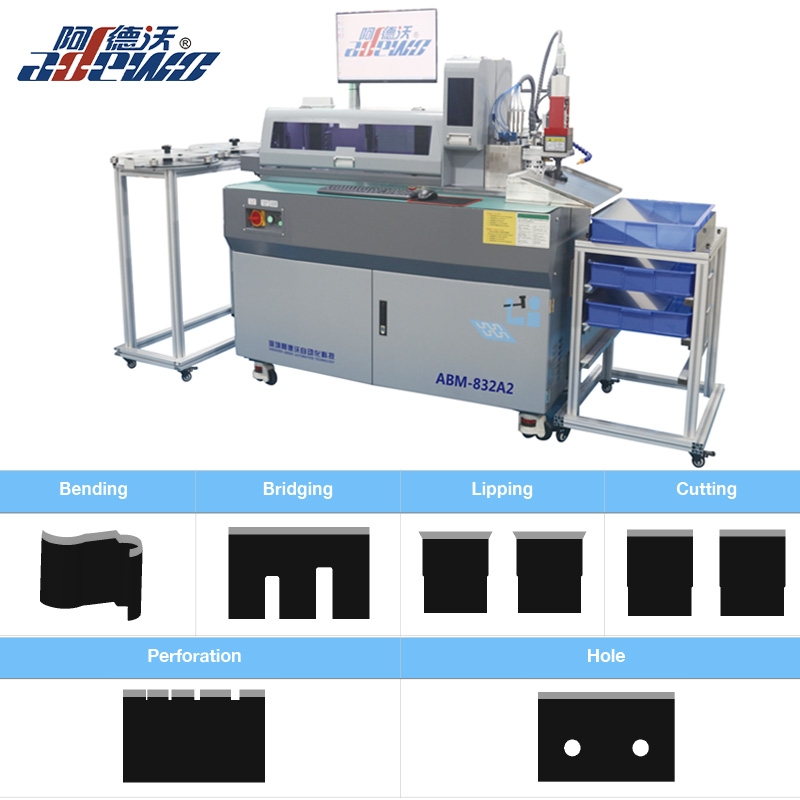

Picture of (ABM-A832A)2PT 3PT Steel Rule Auto Bender Machine for reference:
1.Multi-Functions：All functions in one machine.(ABM-A832A)2PT 3PT Steel Rule Auto Bender Machine with Bending,Bridge,Perforation,Hole,Lipping and Cutting.
2.Bending System:The Bending&Cutting in one tool that increase cutting speed, no need to hold the short dies by hand when cutting.Smart safety protection can effectively avoid the accident.

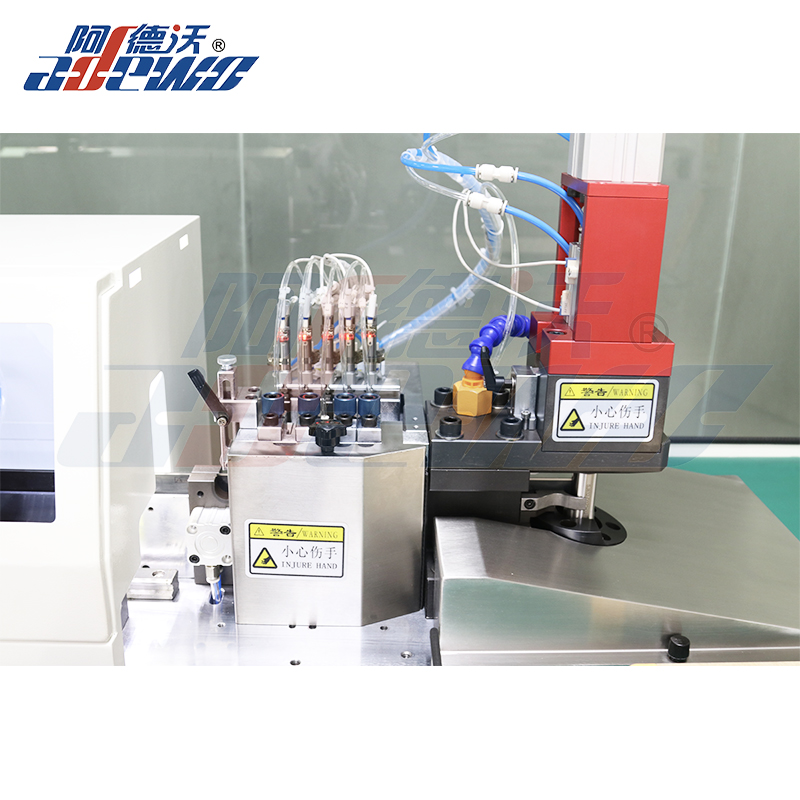

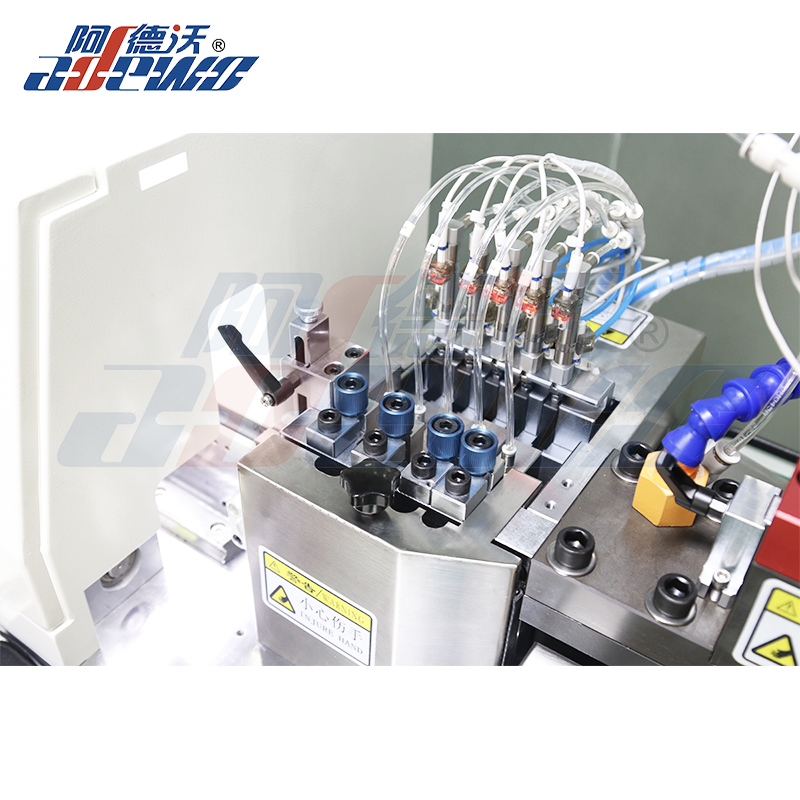

3.Punching Tools are separately which more convenient of replacement and save cost.

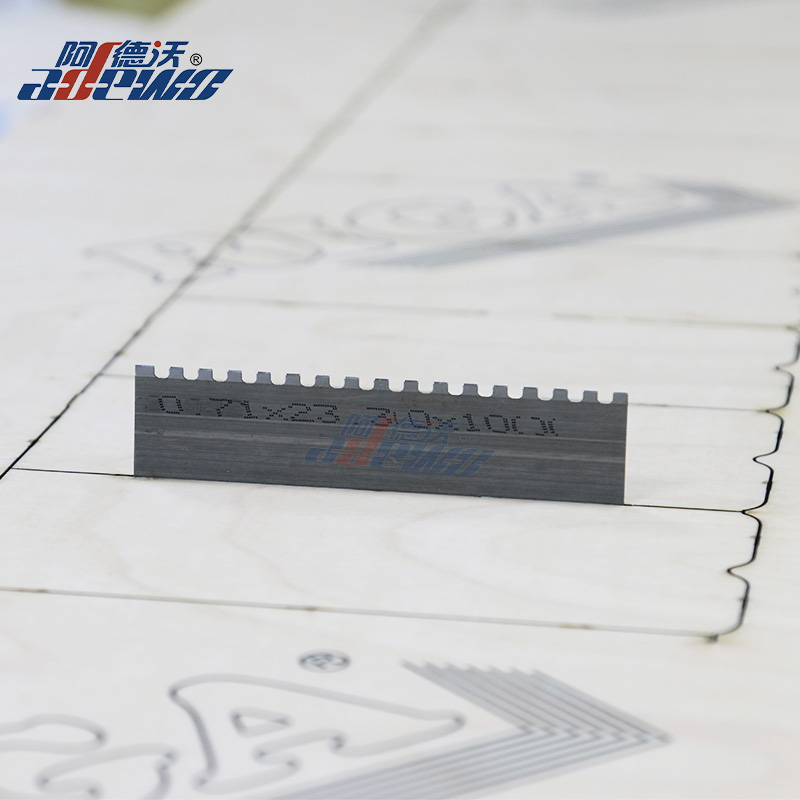

4.Lipping Tool, Cutting Tool and Perforation Tool are customization according to the edge of the steel rule which you use, to get high precision lipping size, cutting and perforation.

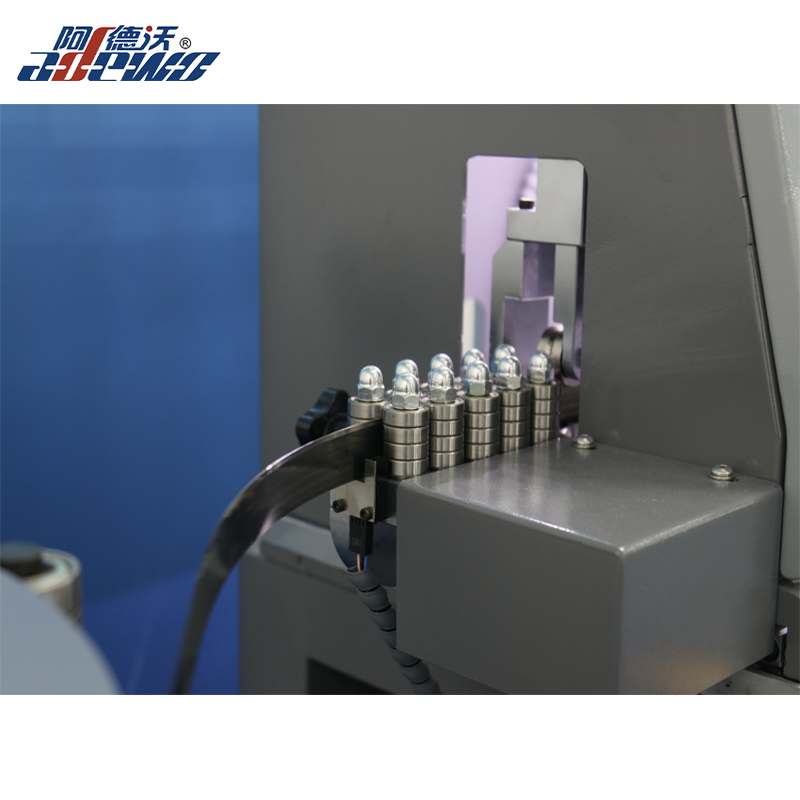

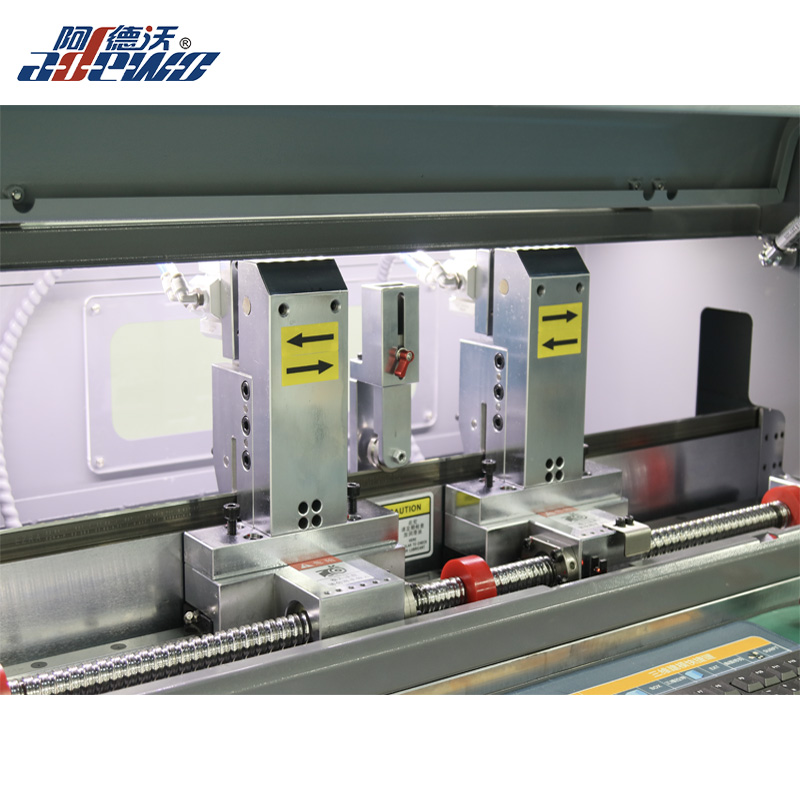

5.Feeding System:This 2PT 3PT Steel Rule Auto Bender Machine with double feeding clips which improves feeding speed and more stable.
6.Software System:This 2PT 3PT Steel Rule Auto Bender Machine with newly developed software,Chinese-English language can be selected optionally by users.Friendly software and easy to operate.

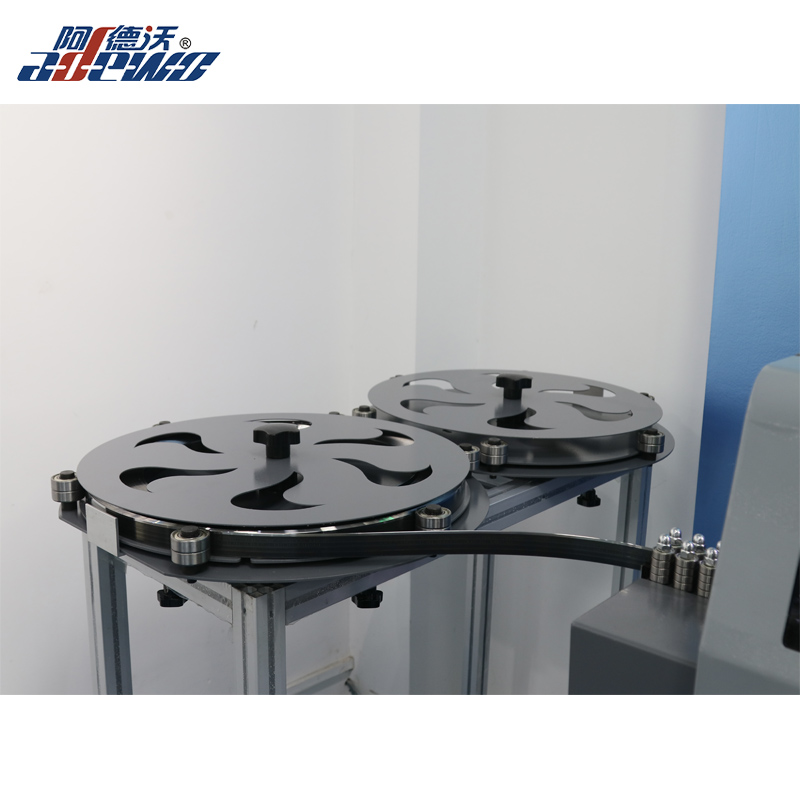

7.Automatic Rule Cassette with display：Independent 6 floors rule cassette that the height can be adjusted by display. Smart safety protection can effectively avoid the accident.
|
Supported rule thickness(mm) |
0.71mm&1.05mm (2pt&3pt) |
|
Supported rule height(mm) |
23.80-32mm |
|
Bridge height |
18mm&15mm adjustable |
|
Bridge width |
Over 5mm any sizes available. |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.5MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
±0.2mm |
|
Basic Functions |
Bending,Bridge,Lipping,Cutting |
|
Optional Functions |
Perforation/Hole |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8mpa |
|
Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
578KGS |
|
Overall dimension |
2650x800x1600mm(LxWxH) |
|
H.S. Code |
8462230000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDU
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time?
7-10 working days.
4.How about installation and training of 2PT 3PT Steel Rule Auto Bender Machine
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
5.Any spare tools are included of 2PT 3PT Steel Rule Auto Bender Machine?
Yes,the new order machine with free spare tools.
