(ADW-LC600)600 watts Die Making Laser Cutting Machine with fast cutting speed, around 40–45 meters/hour 18mm plywood; High precision, cutting precision is +-0.05mm; Smooth cutting, CO2 CNC laser cutting; Lower noise. China Adewo has been successful for many domestic and foreign enterprises to provide advanced Laser Cutting machine,Auto Bender Machine,Creasing Cutting Machine, technical support and excellent after sales service.
These are related to the 600 Watts Die Making Laser Cutting Machine news, in which you can learn about the updated information in 600 Watts Die Making Laser Cutting Machine, to help you better understand and expand 600 Watts Die Making Laser Cutting Machine market. Because the market for 600 Watts Die Making Laser Cutting Machine is evolving and changing, so we recommend that you collect our website, and we will show you the latest news on a regular basis.

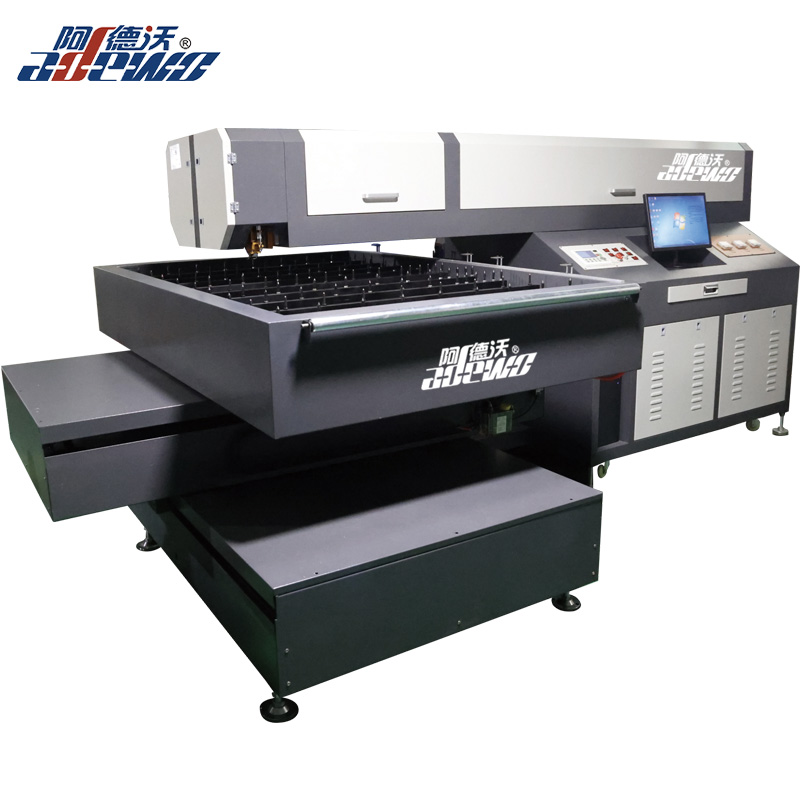

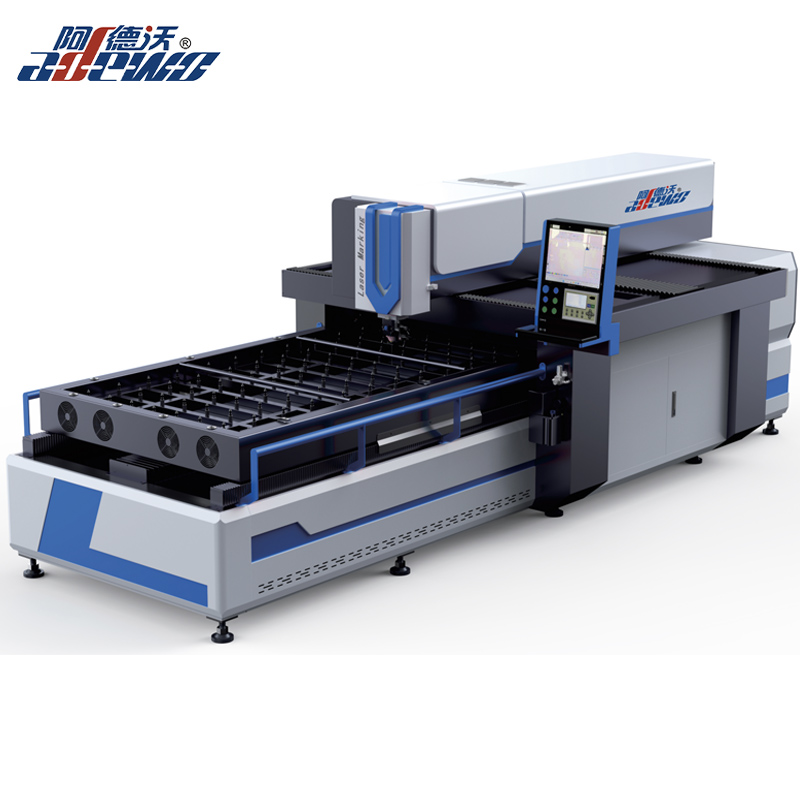

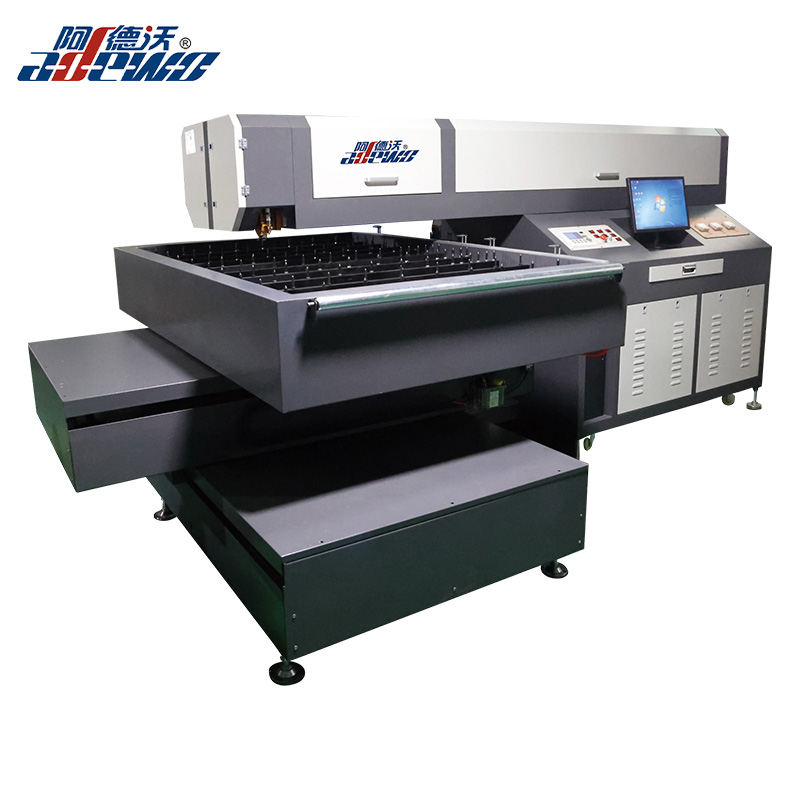

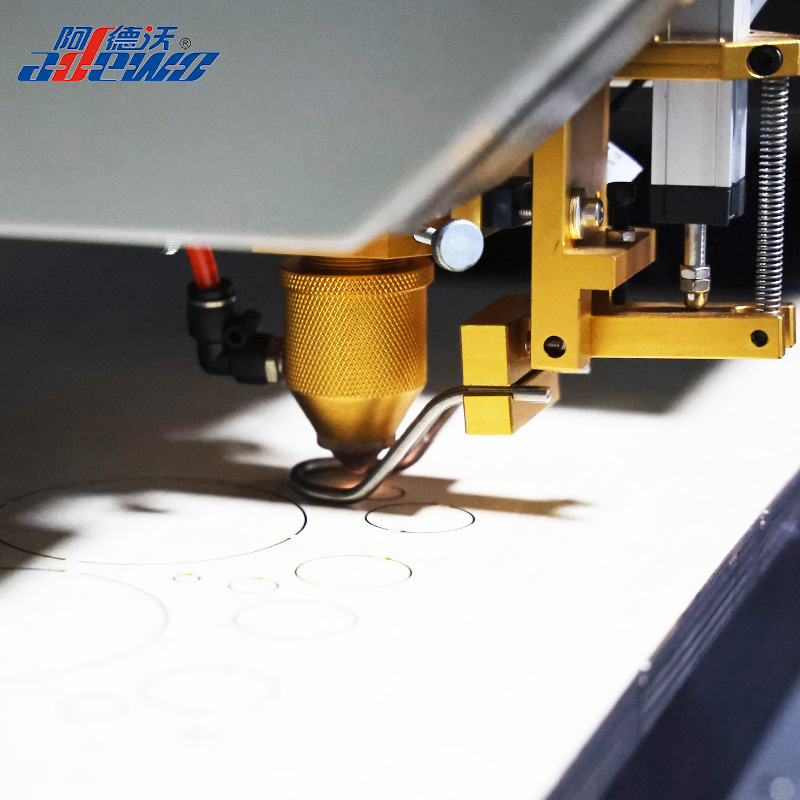

Picture of (ADW-LC600)600 watts Die Making Laser Cutting Machine for reference:

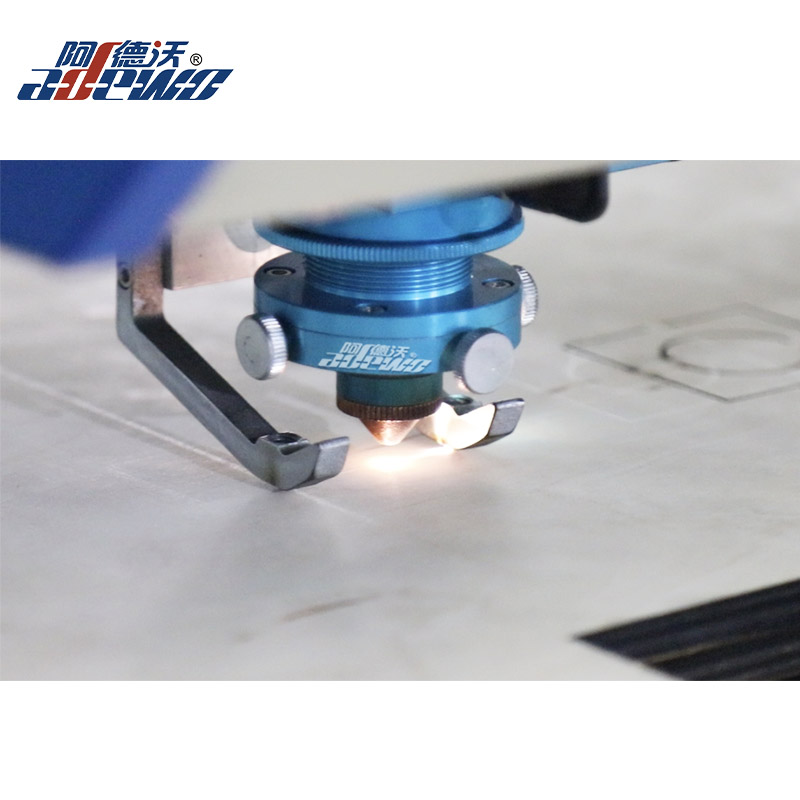

Fixed laser line path(the laser head fixed, the material body moved) of 600 watts Die Making Laser Cutting Machine.
600 watts Die Making Laser Cutting Machine withfast cutting speed, around 40–45 meters/hour 18mm plywood; High precision, cutting precision is +-0.05mm; Smooth cutting, CO2 CNC laser cutting; Lower noise.

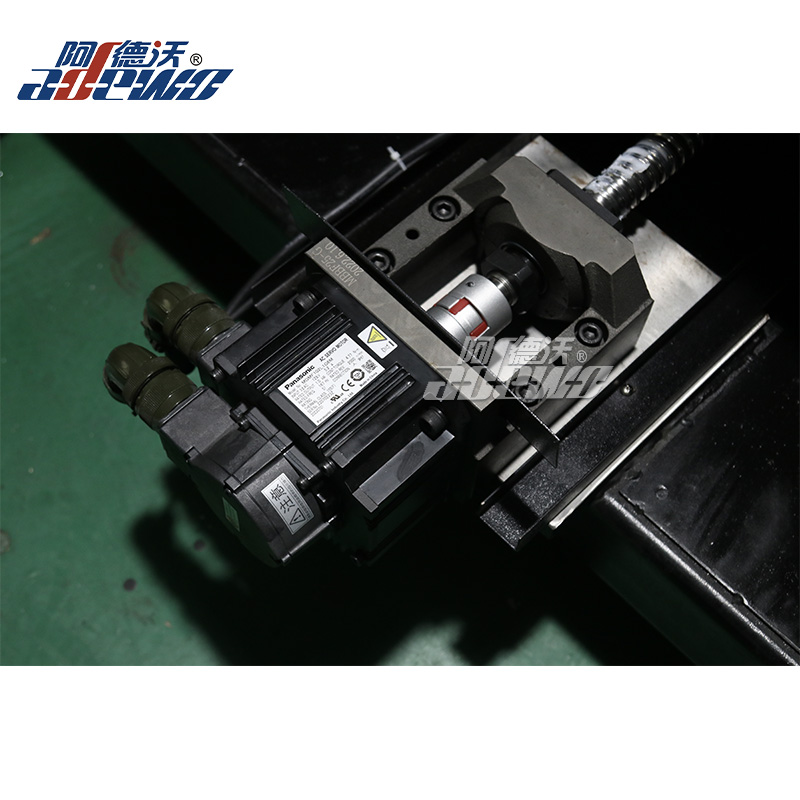

Imported precision ball screw driving (more precise than general one), with the error of precision electronic mould of 0.05mm.
Low electricity consumption and low cost of 600 watts Die Making Laser Cutting Machine, 220V single-phase electricity, 3KW/h (3000w power machine)
High-strength stable machine tool without deformation for long term working.
Real time regulation: Users can regulate the laser power, according to needs to improve the cutting effect.
|
Model No. |
ADW-LC600 |
|
Laser power |
600W Single head |
|
Working area |
Width1200mm x Length1800mm |
|
Driving style |
Fixed laser line path(the laser head fixed, the material body moved) |
|
Cutting speed |
600 watts:40-45 meters/hour,18mm plywood |
|

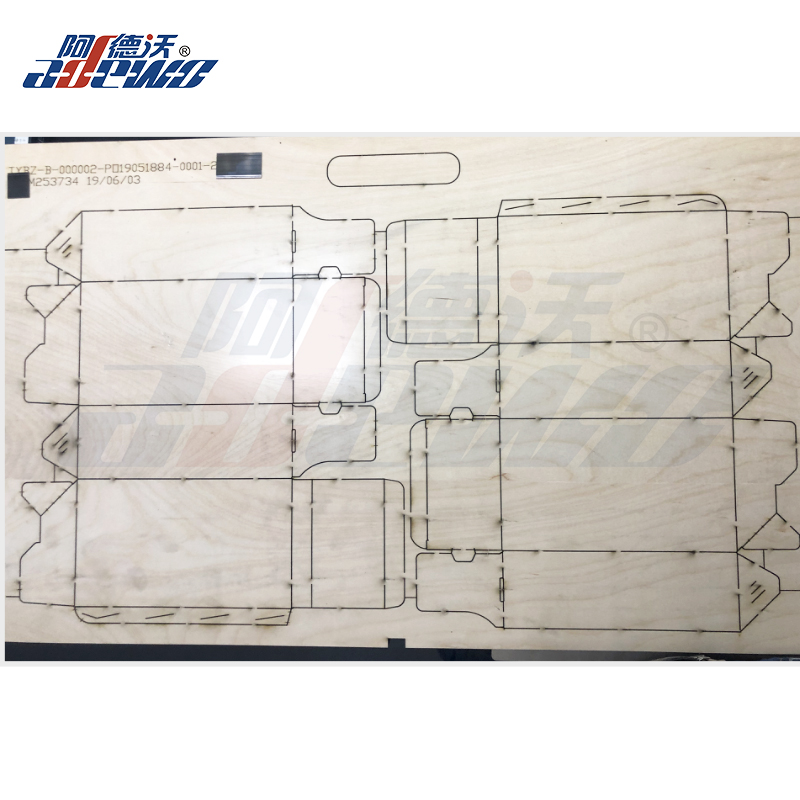

Cutting materials and thickness |
6-9-15-18-22mm plywood,PVC Board,Acrylics and Less than 3mm steel rule. |
|
Cooling water temperature |
5℃-30℃ |
|

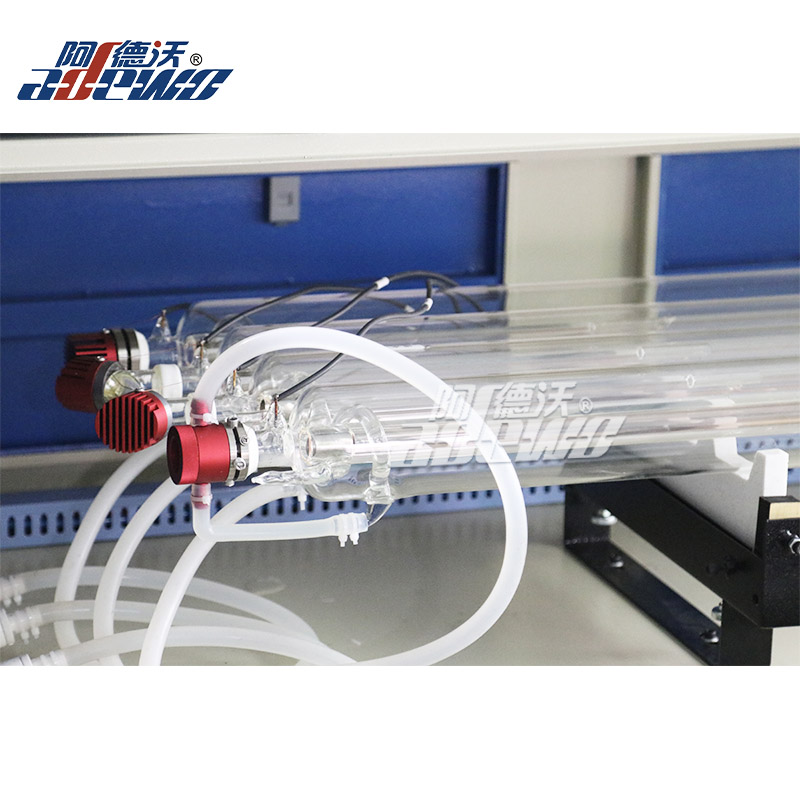

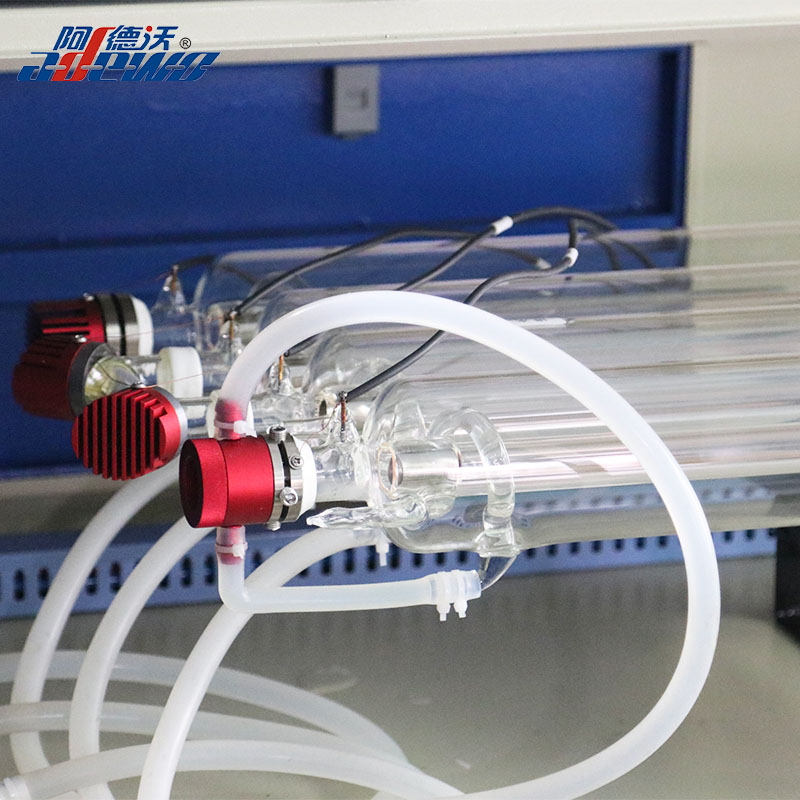

Laser type |
CO2 sealed of glass laser |
|

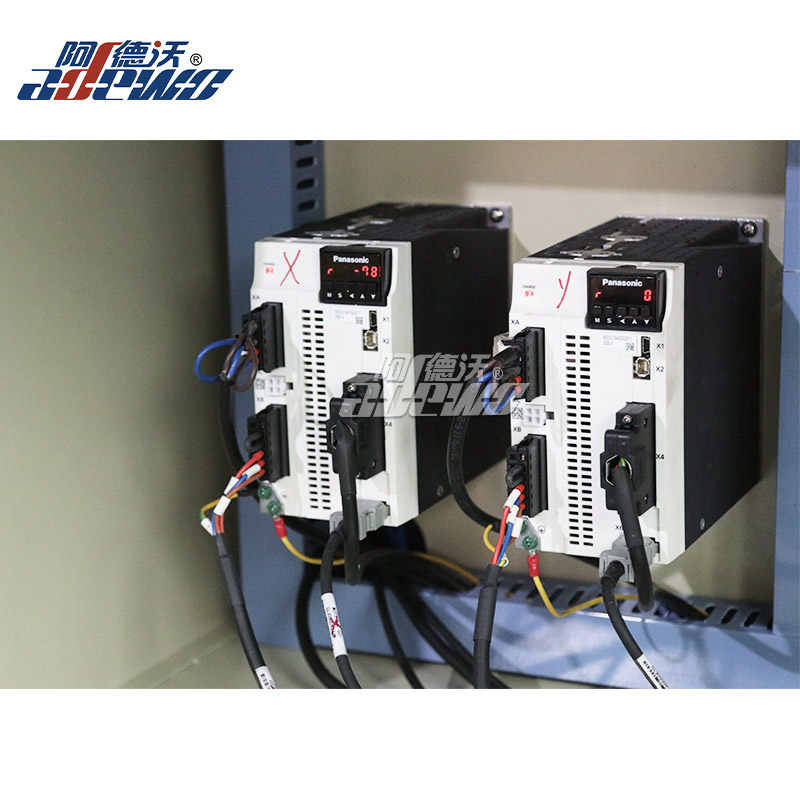

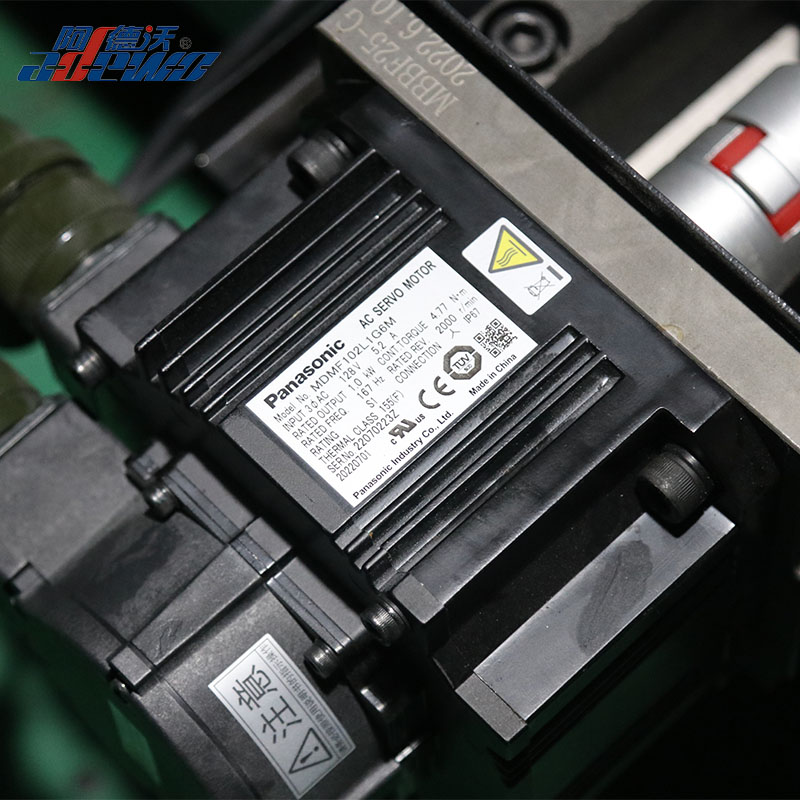

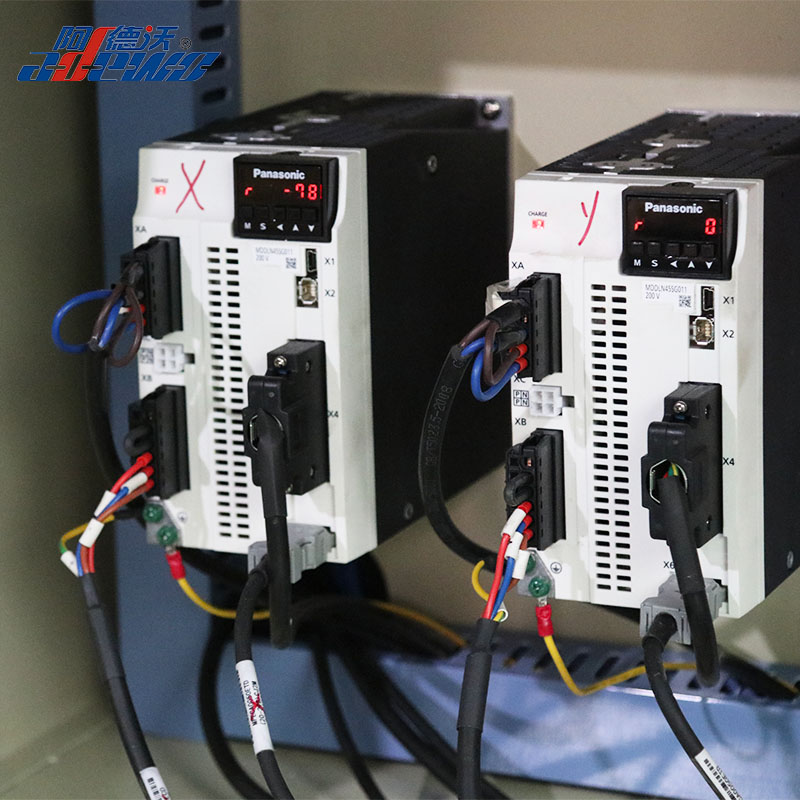

Driving system |
Servo motor system |
|
Blade thickness |
0.45mm,0.71mm,1.05mm,1.07mm…ect |
|
Cutting precision |
±0.05mm |
|
Figure format |
AL, DST, PLT, BMP, DXF |
|
Supporting software |
CorelDraw,AutoCAD,photoshop |
|
Cooling system |
Water cooling |
|
Operating temperature |
1℃~40℃ |
|

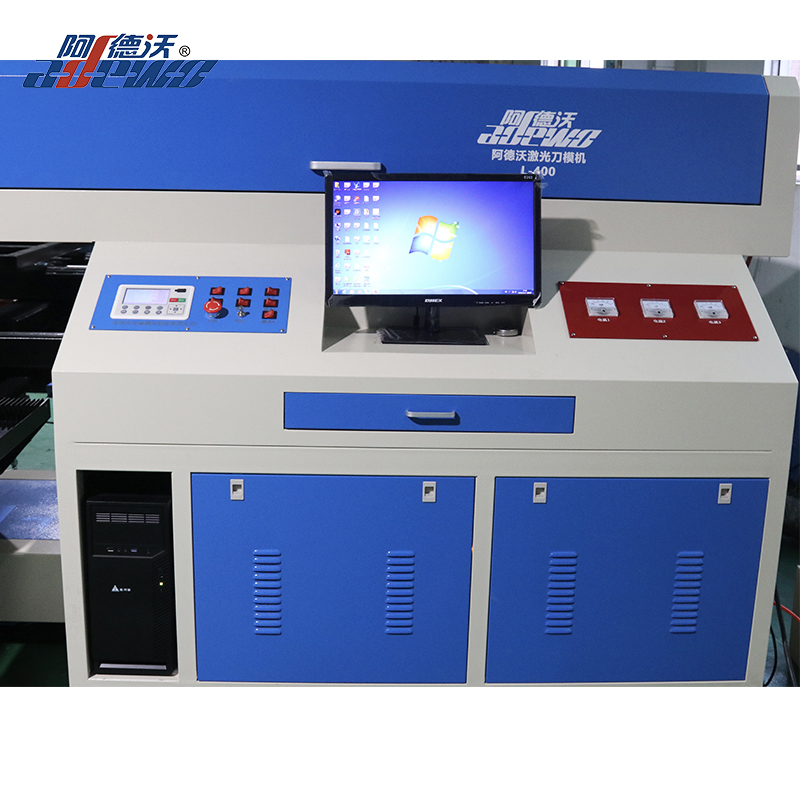

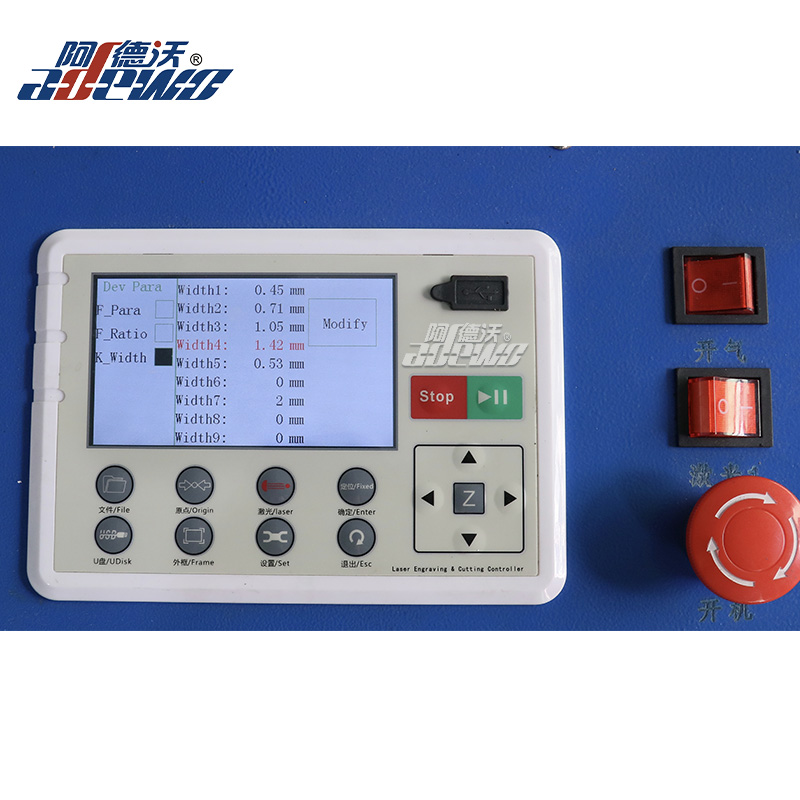

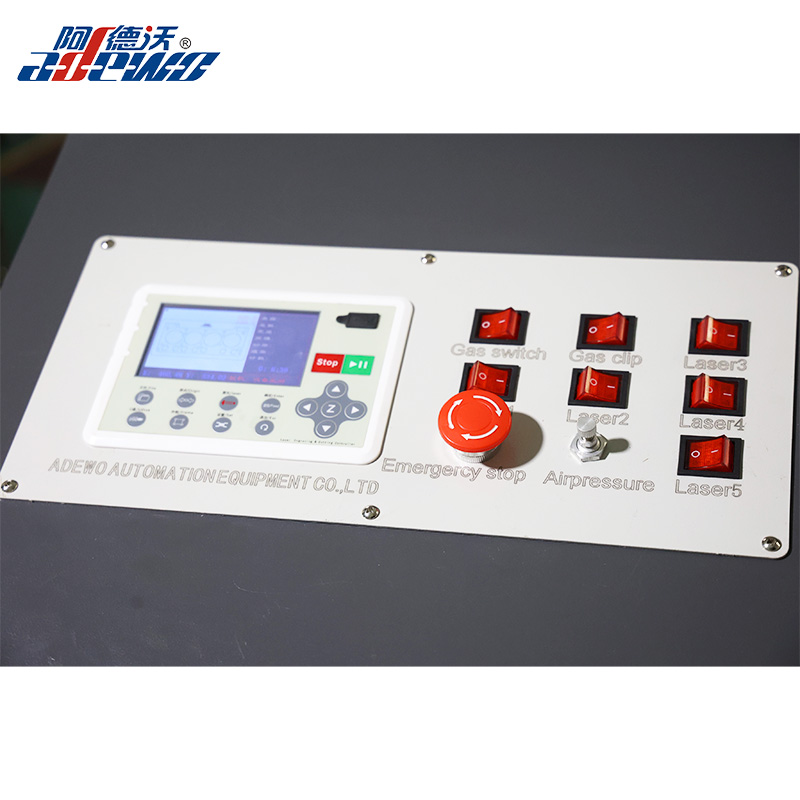

Numerical control panel |
LCD screen,Light-touched key-press off-line condition |
|
EMS memory |
Attached 32MB memory, can work under off-line condition |
|
Assistant equipments(Free) |
Industrial chiller ,Exhaust fans,Computer system,Compressed Air Filter |
|
Power supply |
Single Phase220V,50Hz/60Hz 10A |
|
Total power |
5KW |
|
Machine size（stand still） |
L4120xW2800xH1530mm |
|
Machine size（working） |
L4320xW3880xH1530mm |
|
Machine weight |
1800kg |
|
H.S. Code |
8456110090 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time of 600 watts Die Making Laser Cutting Machine?
10-15 working days.
4.How about installation and training of 600 watts Die Making Laser Cutting Machine?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
5.What’s the cutting speed of this 600 watts Die Making Laser Cutting Machine?
40–45 meters/hour 18mm plywood by 600 watts Die Making Laser Cutting Machine ; High precision, cutting precision is +-0.05mm; Smooth cutting, CO2 CNC laser cutting; Lower noise.
