(ADW-LC600)600 watts Plywood Die Making Laser Cutting Machine with fast cutting speed, around 40–45 meters/hour 18mm plywood; High precision, cutting precision is +-0.05mm; Smooth cutting, CO2 CNC laser cutting; Lower noise. China Adewo has been successful for many domestic and foreign enterprises to provide advanced Laser Cutting machine,Auto Bender Machine,Creasing Cutting Machine, technical support and excellent after sales service.
The following is the introduction of high quality 600 watts Plywood Die Making Laser Cutting Machine, hoping to help you better understand 600 watts Plywood Die Making Laser Cutting Machine. Welcome new and old customers to continue to cooperate with us to create a better future!

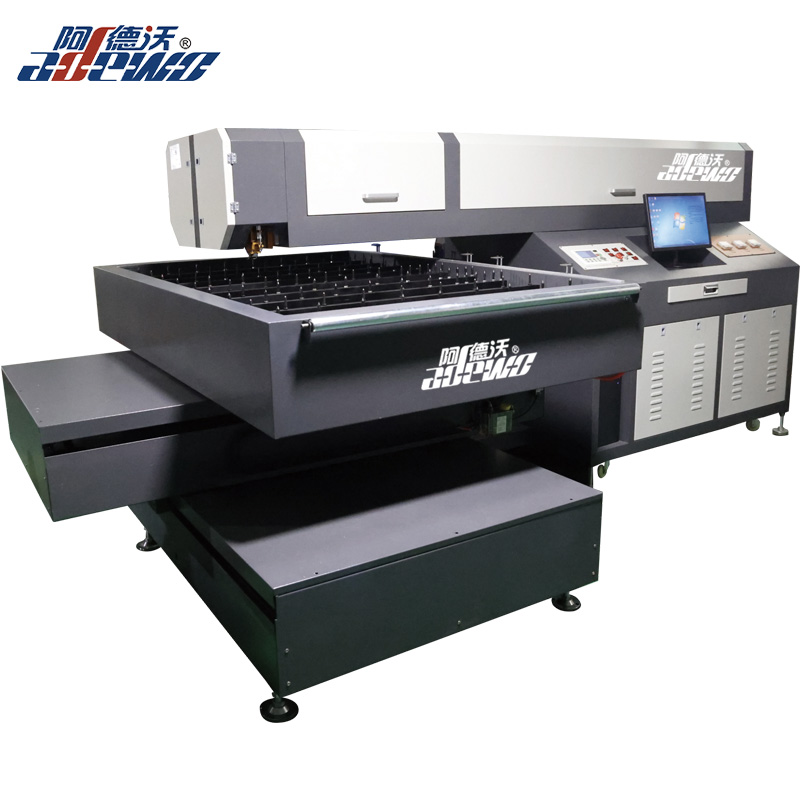

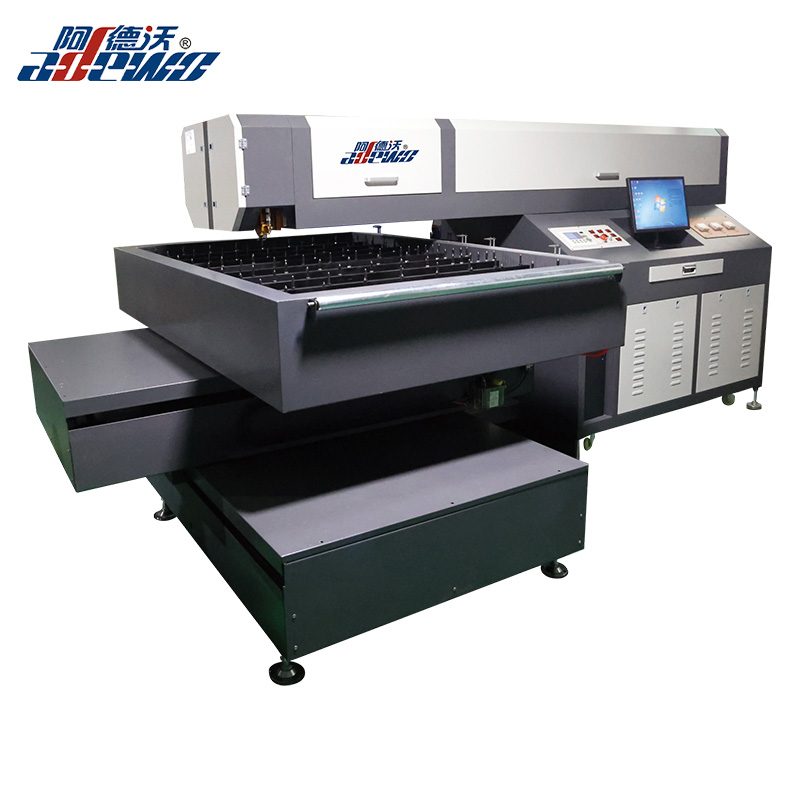

Picture of (ADW-LC600) 600 watts Plywood Die Making Laser Cutting Machinefor reference:
2.600 watts Plywood Die Making Laser Cutting Machine with fast cutting speed, around 40–45 meters/hour 18mm plywood; High precision, cutting precision is +-0.05mm; Smooth cutting, CO2 CNC laser cutting; Lower noise.
3.Imported precision ball screw driving (more precise than general one), with the error of precision electronic mould of 0.05mm.
4.Low electricity consumption and low cost of 600 watts Plywood Die Making Laser Cutting Machine, 220V single-phase electricity, 3KW/h (3000w power machine)
5.High-strength stable machine tool without deformation for long term working.
6.Real time regulation: Users can regulate the laser power, according to needs to improve the cutting effect.
|
Model No. |
ADW-LC600 |
|
Laser power |
600W Single head |
|
Working area |
Width1200mm x Length1800mm |
|
Driving style |
Fixed laser line path(the laser head fixed, the material body moved) |
|
Cutting speed |
600watts:40-45 meters/hour,18mm plywood |
|
Cutting materials and thickness |
6-9-15-18-22mm plywood,PVC Board,Acrylics and Less than 3mm steel rule. |
|
Cooling water temperature |
5℃-30℃ |
|
Laser type |

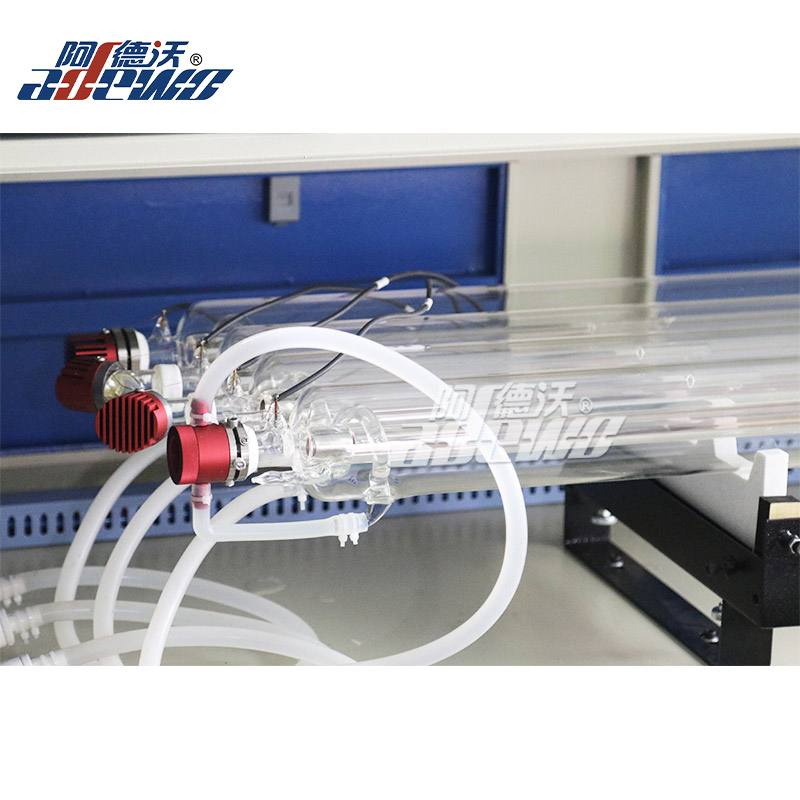

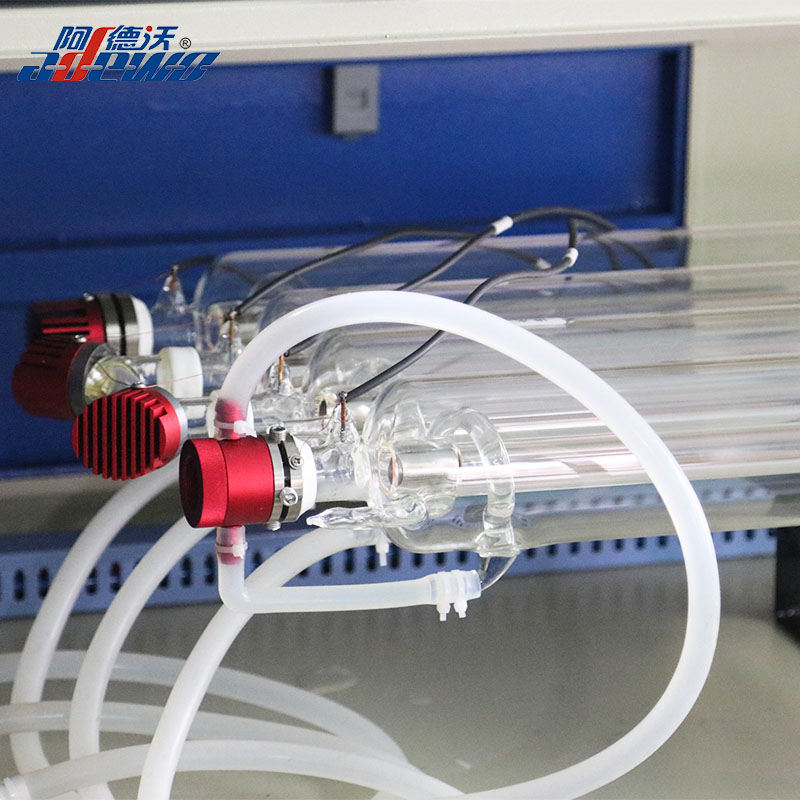

CO2 sealed of glass laser |
|

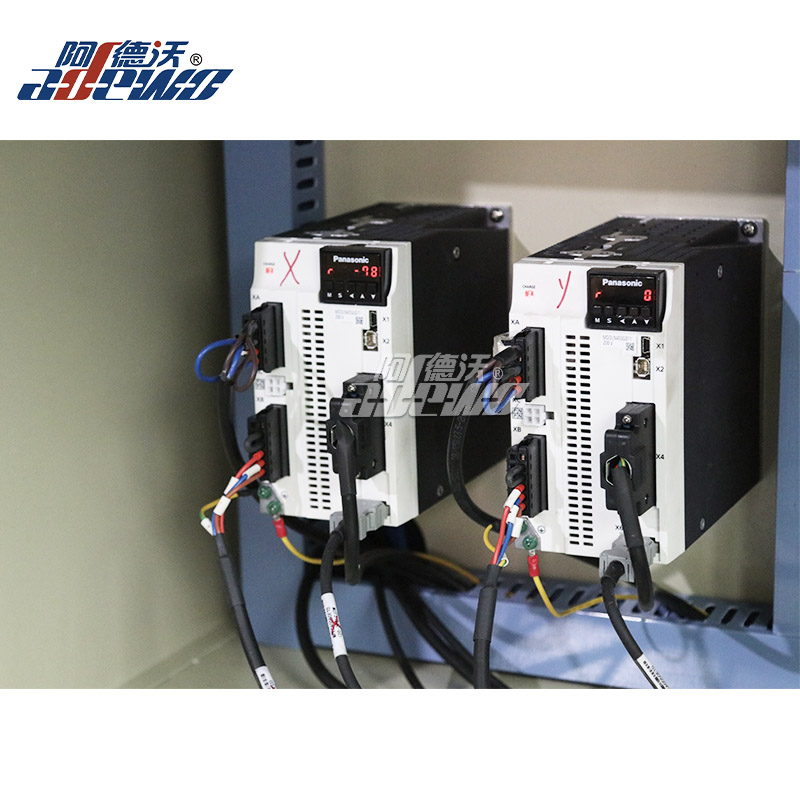

Driving system |

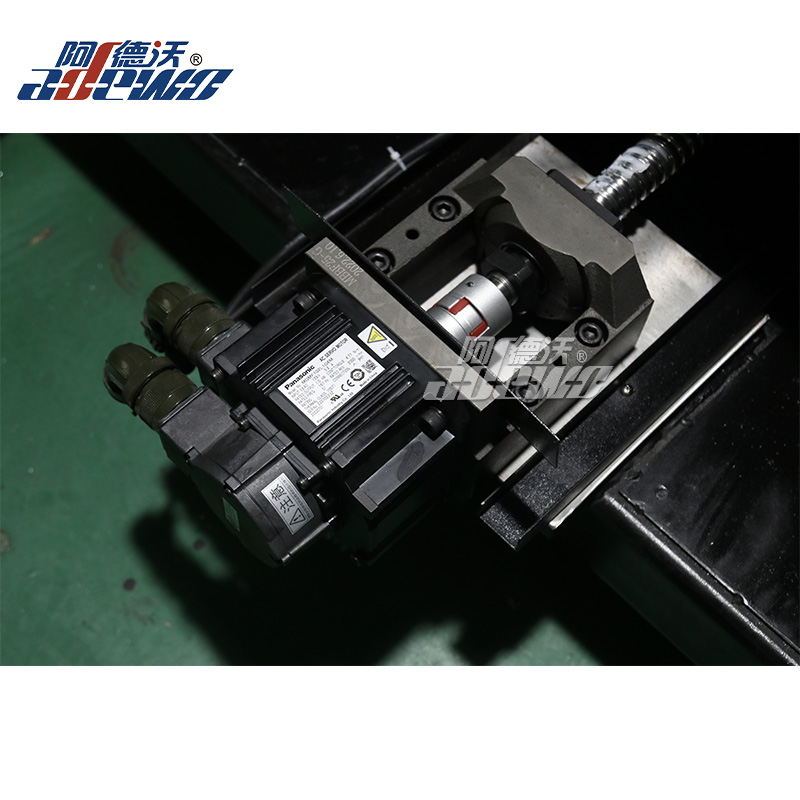

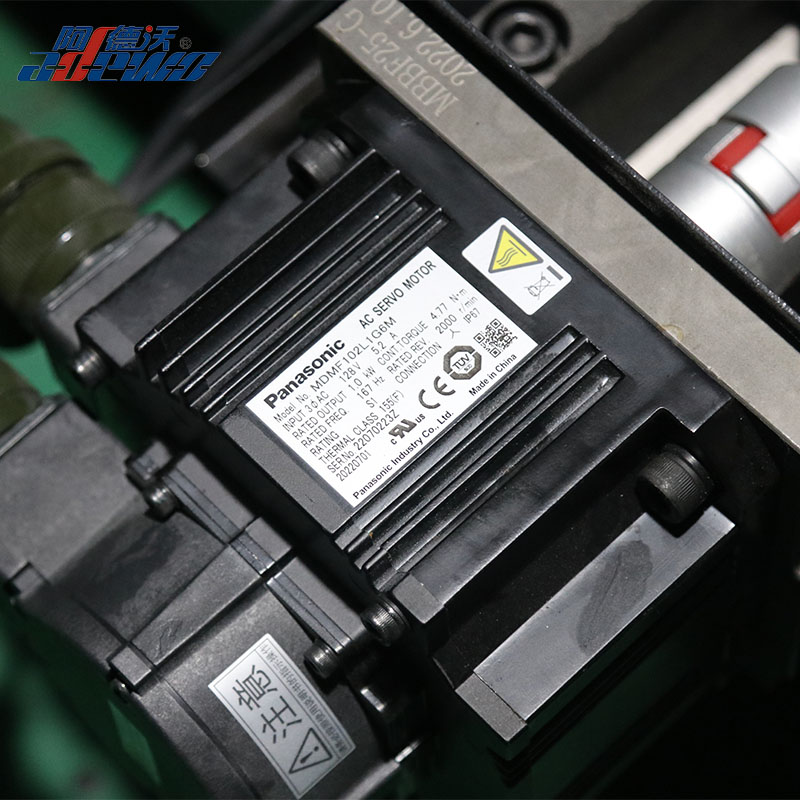

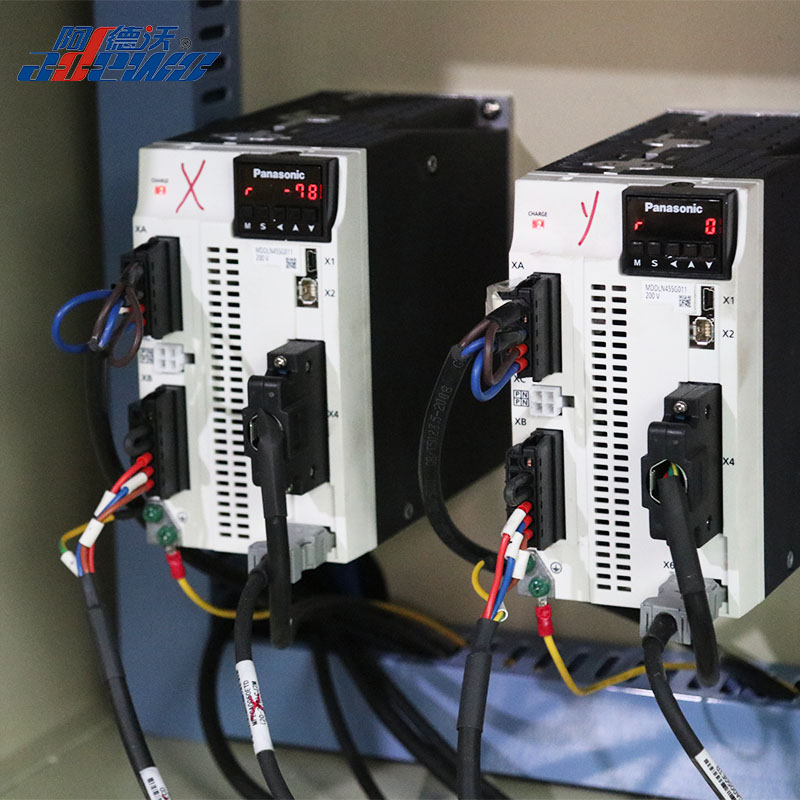

Servo motor system |
|
Blade thickness |
0.45mm,0.71mm,1.05mm,1.07mm…ect |
|
Cutting precision |
±0.05mm |
|
Figure format |
AL, DST, PLT, BMP, DXF |
|
Supporting software |
CorelDraw,AutoCAD,photoshop |
|
Cooling system |
Water cooling |
|
Operating temperature |
1℃~40℃ |
|

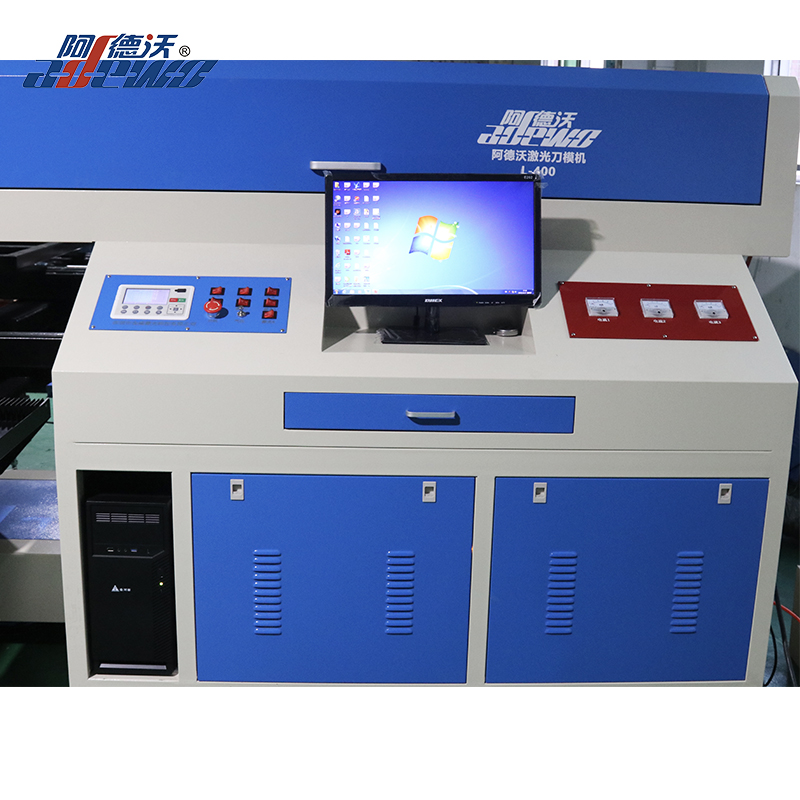

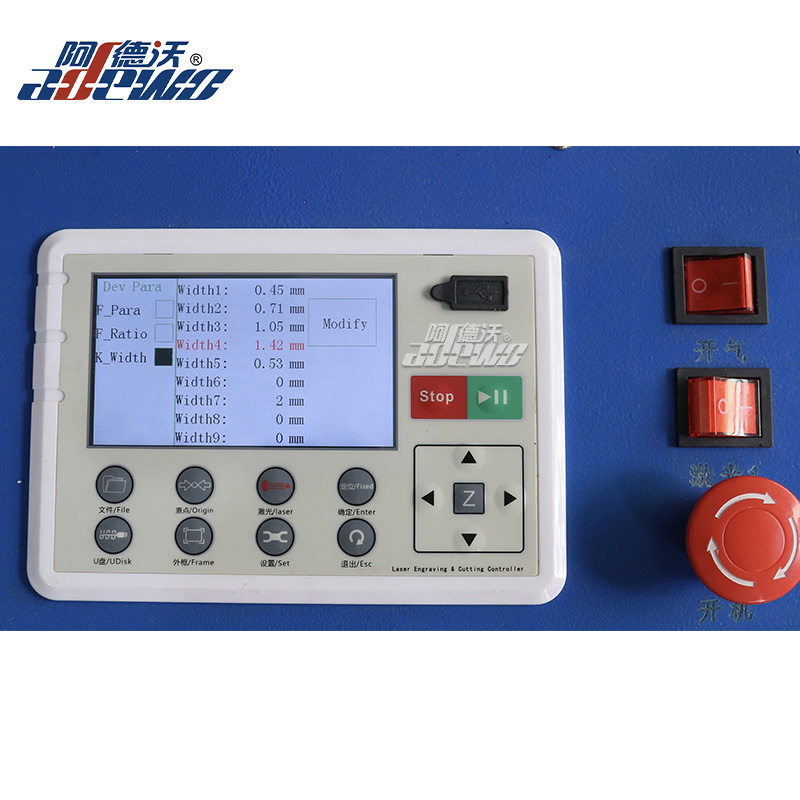

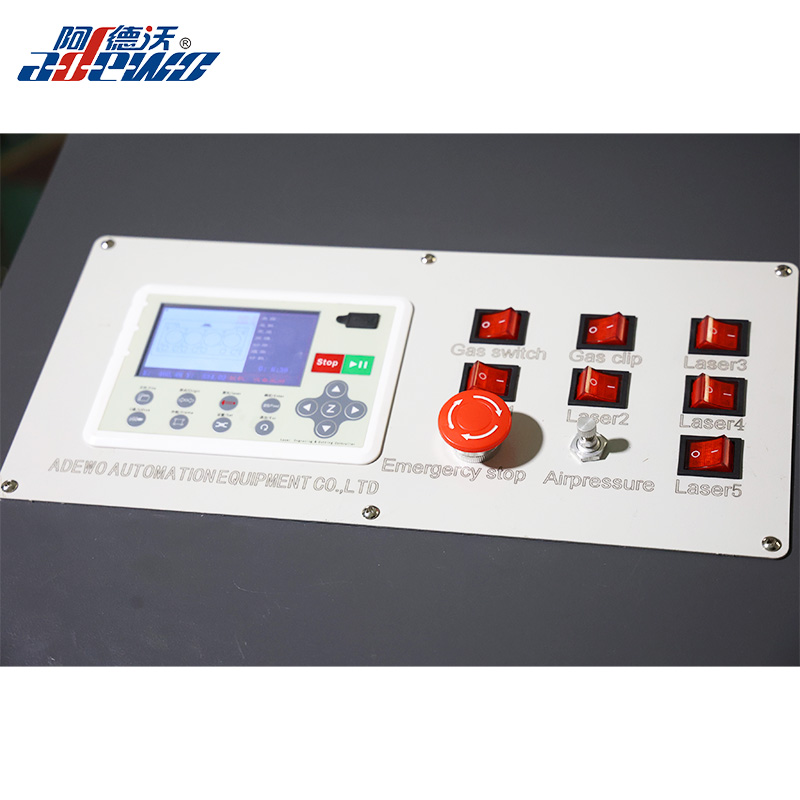

Numerical control panel |
LCD screen,Light-touched key-press off-line condition |
|
EMS memory |
Attached 32MB memory, can work under off-line condition |
|
Assistant equipments(Free) |
Industrial chiller ,Exhaust fans,Computer system,Compressed Air Filter |
|
Power supply |
Single Phase220V,50Hz/60Hz 10A |
|
Total power |
5KW |
|
Machine size（stand still） |
L4120xW2800xH1530mm |
|
Machine size（working） |
L4320xW3880xH1530mm |
|
Machine weight |
1800kg |
|
H.S. Code |
8456110090 |
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
