ABM-A8105C32 Die Boards Blade Auto Bender Machine included functions:Broaching,Bending,Bridge,Nicking,Perforation,Lipping and Cutting. Supported steel rule thickness 0.45,0.53,0.71,1.05mm,height 8-32mm. Adewo specializing in developing and manufacturing die cutting equipment including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.
The following is the introduction of high quality Die Boards Blade Auto Bender Machine, hoping to help you better understand Die Boards Blade Auto Bender Machine. Welcome new and old customers to continue to cooperate with us to create a better future!We always feel that all success of our company is directly related to the quality of the products we offer.

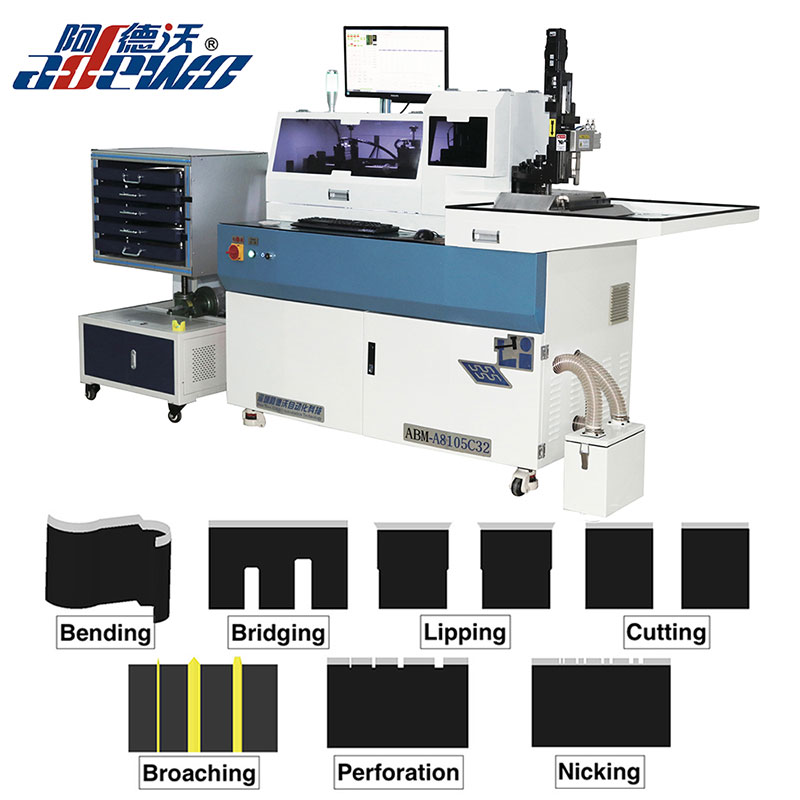

Picture of (ABM-A8105C32) Die Boards Blade Auto Bender Machine for reference:

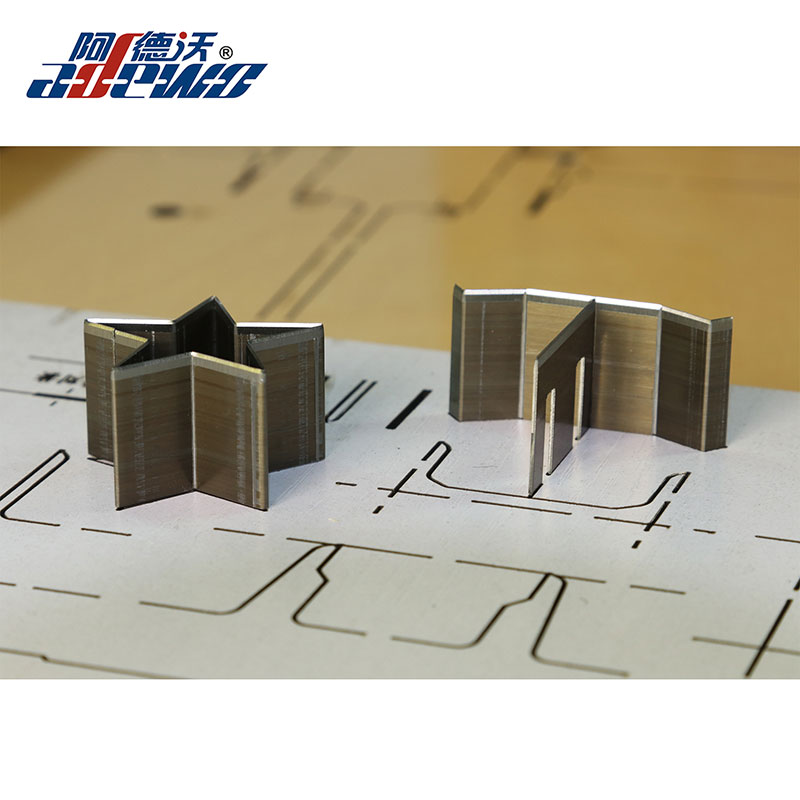

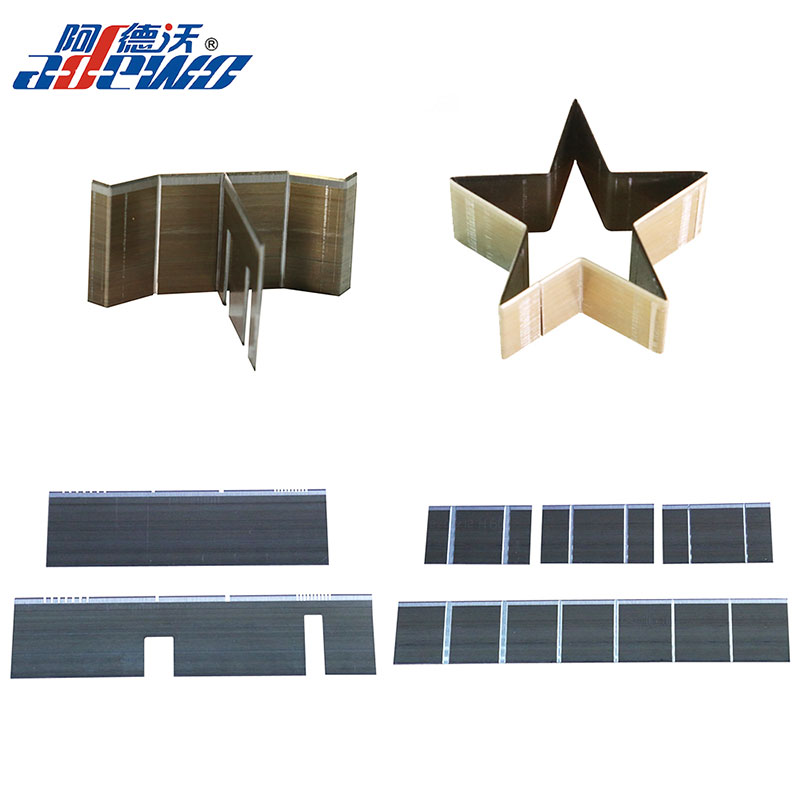

1.Multi-Functions：(ABM-A8105C32)Die Boards Blade Auto Bender Machine with Broaching,Bending,Bridge,Nicking,Perforation,Lipping and Cutting.
All functions in one machine.
|
Bending |
Bridge |
Lipping |
Seamless Cut |
|
|
|
|
|
|
Broaching |
Nicking |
Perforation |
Hole |
|
|
|
|
|
2.Broaching and Nicking System:This Die Boards Blade Auto Bender Machine using high hardness tungsten saw blades, the durability will be significantly improved.The depth of Broaching and Nicking can be altered automatically by the software to meet different requirements.

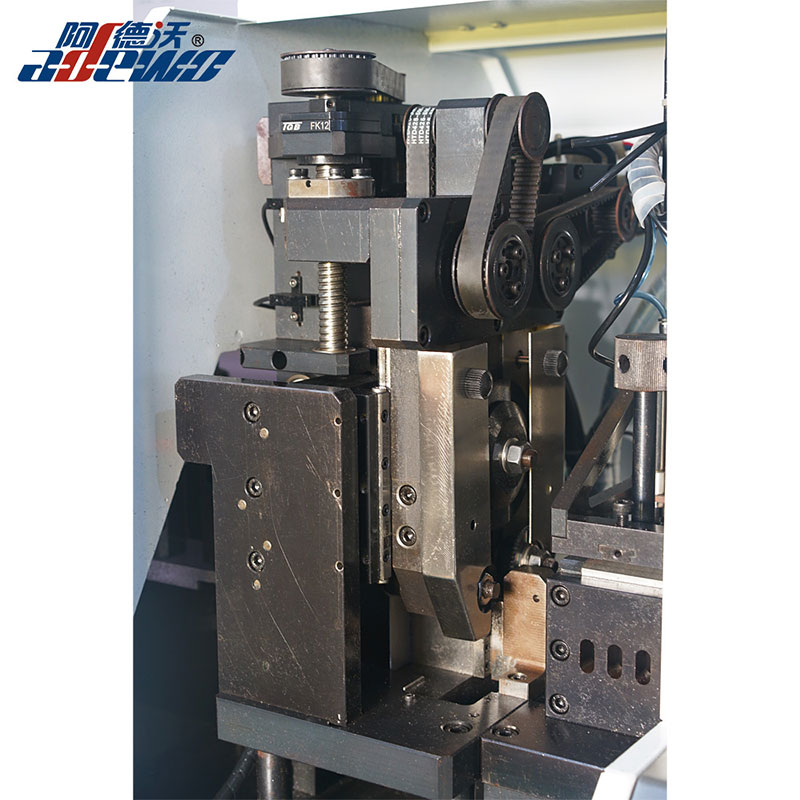

3.Bending System:Adopting sleeve bending system can produce different complicated angles quickly.Flatness can be adjusted quickly to be suitable to all kinds of rules.

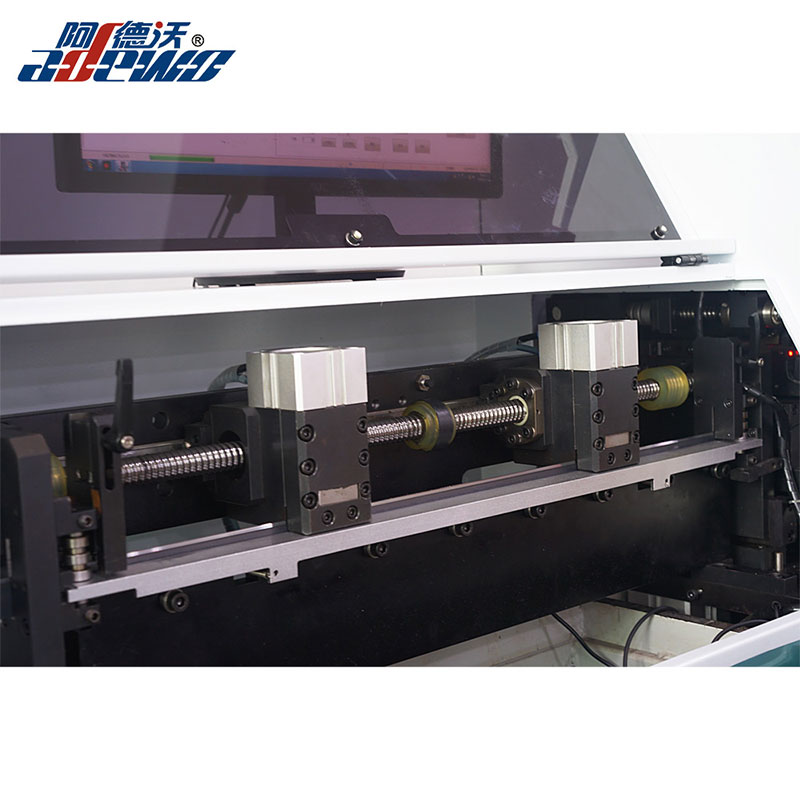

4.Feeding System:This Die Boards Blade Auto Bender Machine with Double clips feeding system, fast speed and more stable.
5.Software System:This Die Boards Blade Auto Bender Machine Newly developed software,Chinese-English language can be selected optionally by users.Friendly software and easy to operate.
6.Automatic Rule Cassette with display：Independent 6 floors rule cassette that the height can be adjusted by display. Smart safety protection can effectively avoid the accident.
|
Supported Rule Thickness(mm) |
0.45mm/0.53mm/0.71mm/1.05mm |
|
Supported Rule Height(mm) |
8-32mm |
|
Min.Arc Radius of 90 Degree |
0.4mm |
|
Front Min.Bending Size |
1.5mm |
|
Back Min. Cutting Size |
1.0mm |
|
Feeding Precision |
±0.03mm |
|
Bending Flatness |
±0.2mm/100mm |
|
Bridge Width |
5mm(can be customized) |
|
Bridge Height |
12-20mm(Adjustable) |
|
Functions |
Bending, Cutting, Lipping, Bridging, Broaching, |
|
Cutting Methods |
Auto cut-off or Bend cut |
|
Broaching Methods |
Double broaching “V”shape, unique function: broaching at short distance；automatic control broaching depth, precision sharp corners; |
|
Optimal Graphic Format |
DXF,DWG |
|
Air supply |
0.4-0.8Mpa |
|
Power Supply |
Single Phase,AC220V,13.6A,50-60Hz |
|
Machine Total Power |
3KW |
|
Machine Weight |
480KGS |
|
Machine size |
3100×930×1800mm(L×W×H) |
|
H.S. Code |
8462219000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time?
7-10 working days.
4.How about installation and training of Die Boards Blade Auto Bender Machine?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
