(ABM-8142A) Stripping Die Boards Auto Bender Machine included functions:Bending,Bridge,Lipping and Cutting. Supported steel rule thickness 2pt ,3pt,4pt, height 23.80-60mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.
High quality Stripping Die Boards Auto Bender Machine is offered by China manufacturer Shenzhen Adewo Automation Technology Co.,ltd.. Buy Stripping Die Boards Auto Bender Machine which is of high quality directly with low price.

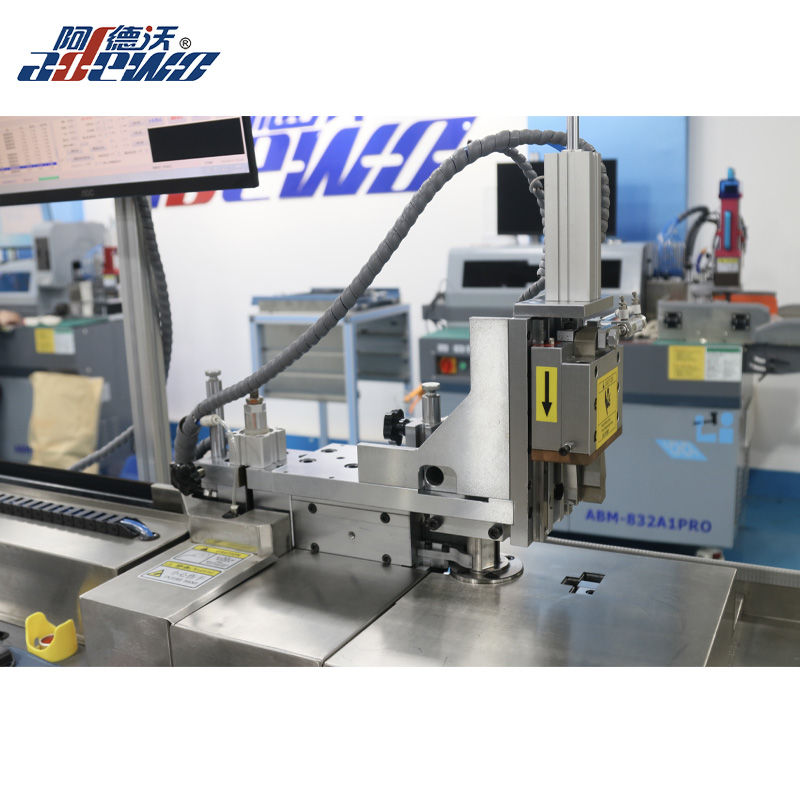

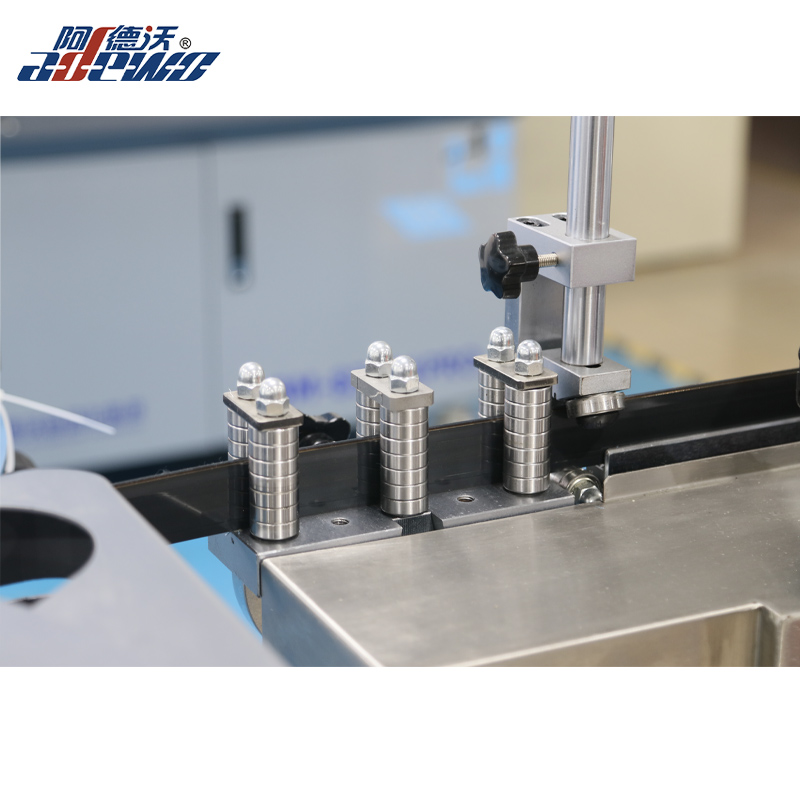

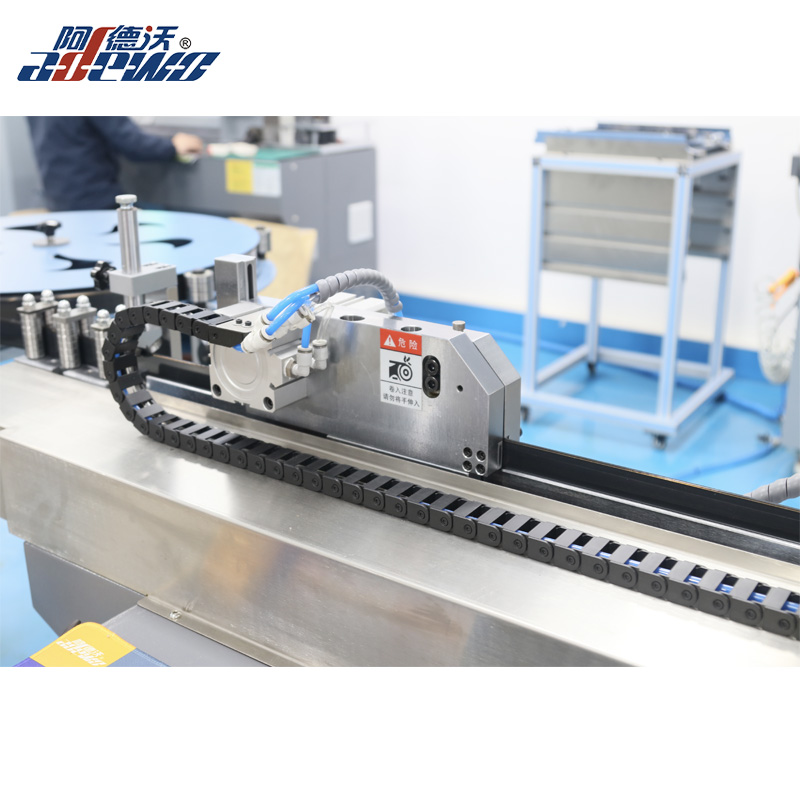

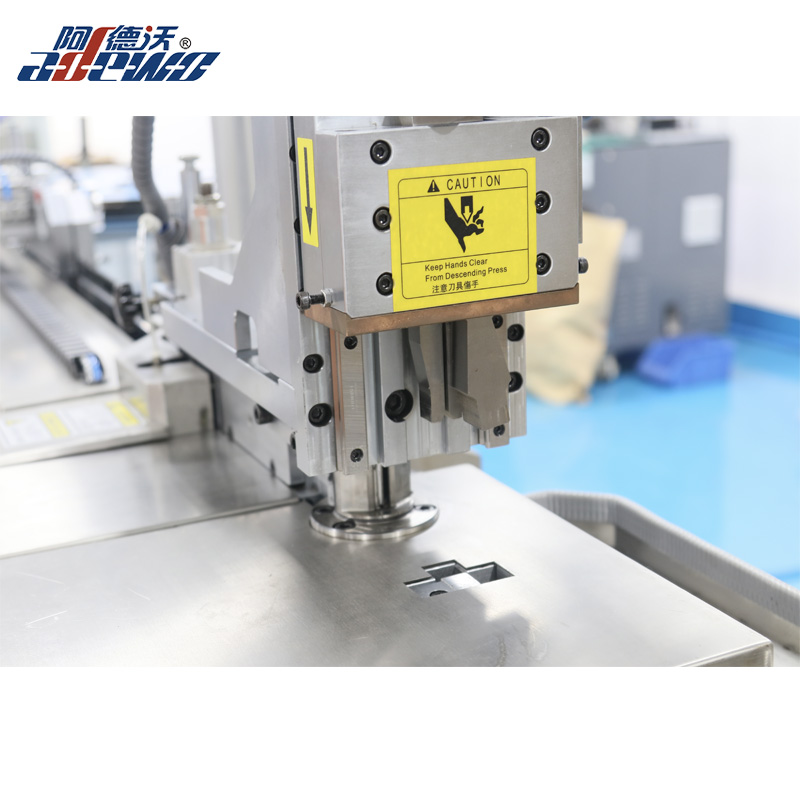

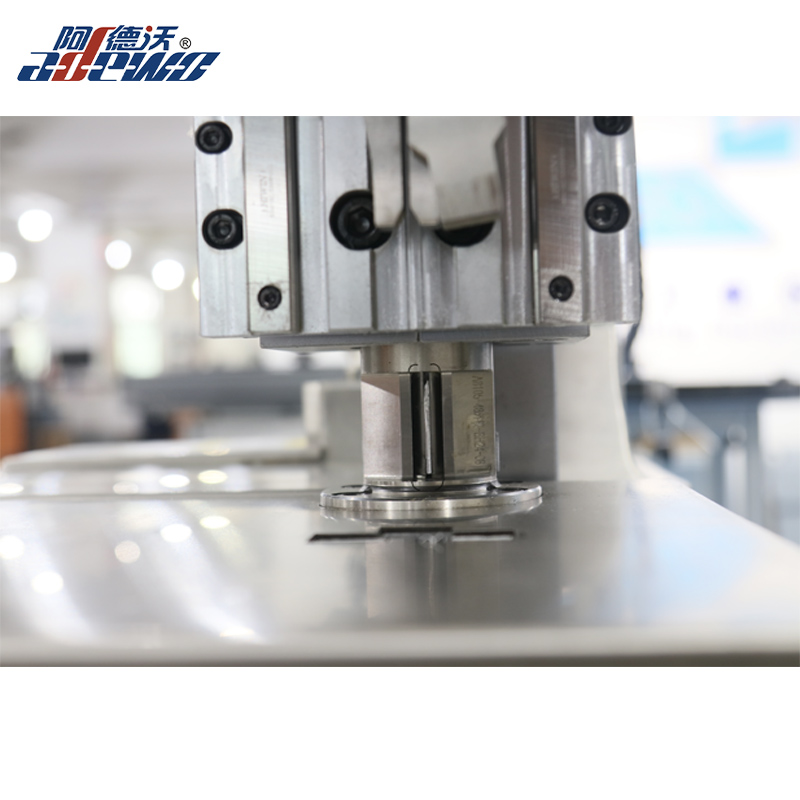

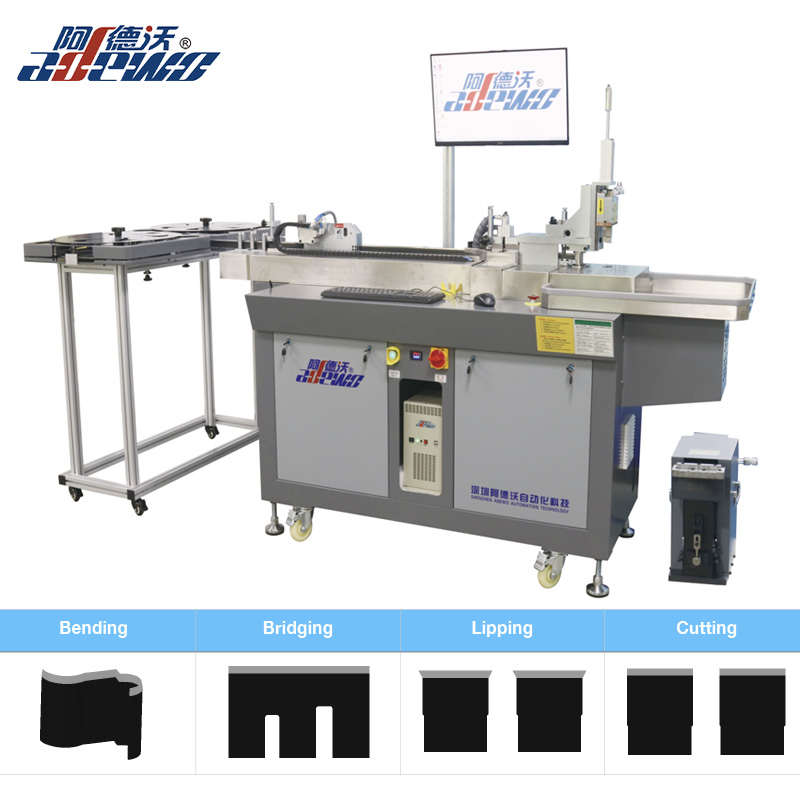

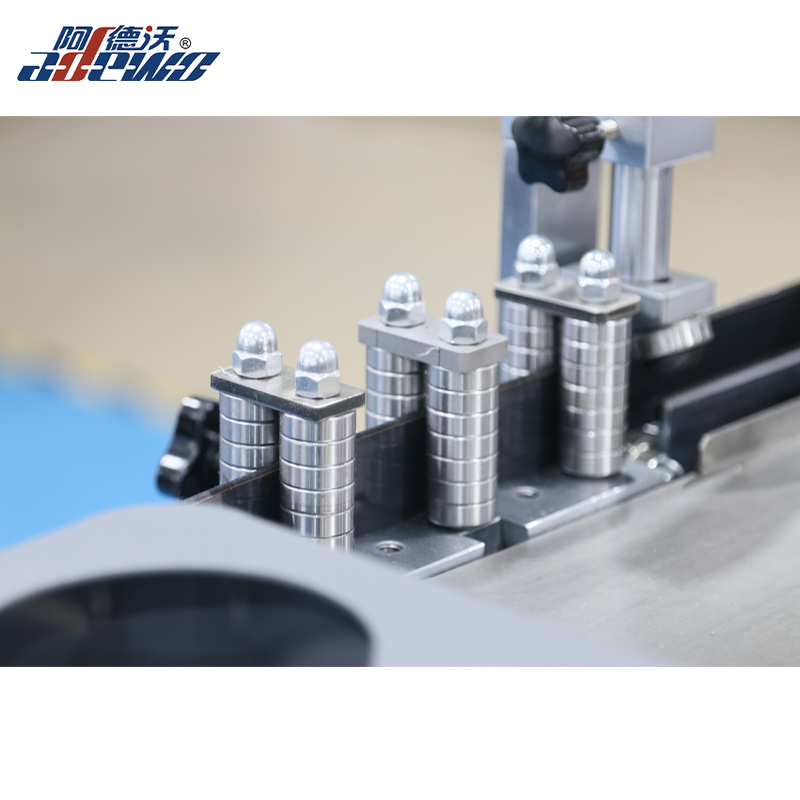

Picture of (ABM-8142A) Stripping Die Boards Auto Bender Machine for reference:
1.Multi-Functions：(ABM-8142A) Stripping Die Boards Auto Bender Machine with Fast and Accurate Bending, Multi-Bridging,Pneumatic Lipping, Cutting.
2.This Stripping Die Boards Auto Bender Machine uses Panasonic Servo motor system, high precise ball-screw guide feeding system.
3.Smart software and easy to operate, multi language operations;
4. Save production time and easy for die making by Stripping Die Boards Auto Bender Machine.
5.This Stripping Die Boards Auto Bender Machine apply to various kinds of mold processing, such as corrugated dies,stripping dies,rotary dies etc.
|
Supported rule thickness(mm) |
0.71,1.05,1.42mm(2pt,3pt,4pt) |
|
Supported rule height(mm) |
23.80-60mm |
|
Bridge height |
13-19mm |
|
Bridge width |
Over 5.5mm any sizes available. |
|
Min. ARC radius of 90 degree |
±0.3MM |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.0MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
±0.2mm |
|
Functions |
Bending,Bridging,Cutting,Pneumatic Lipping |
|
Cutting methods |
Twist off and Auto flat cutting |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8mpa |
|
Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
458KGS |
|
Overall dimension |
2700x1050x1600(L×W×H) |
|
H.S. Code |
8462230000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time of Stripping Die Boards Auto Bender Machine ?
7-10 working days.
4.How about installation and training of Stripping Die Boards Auto Bender Machine?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
5.Any spare tools are included of Stripping Die Boards Auto Bender Machine?
Yes,the new order machine with free spare tools.
